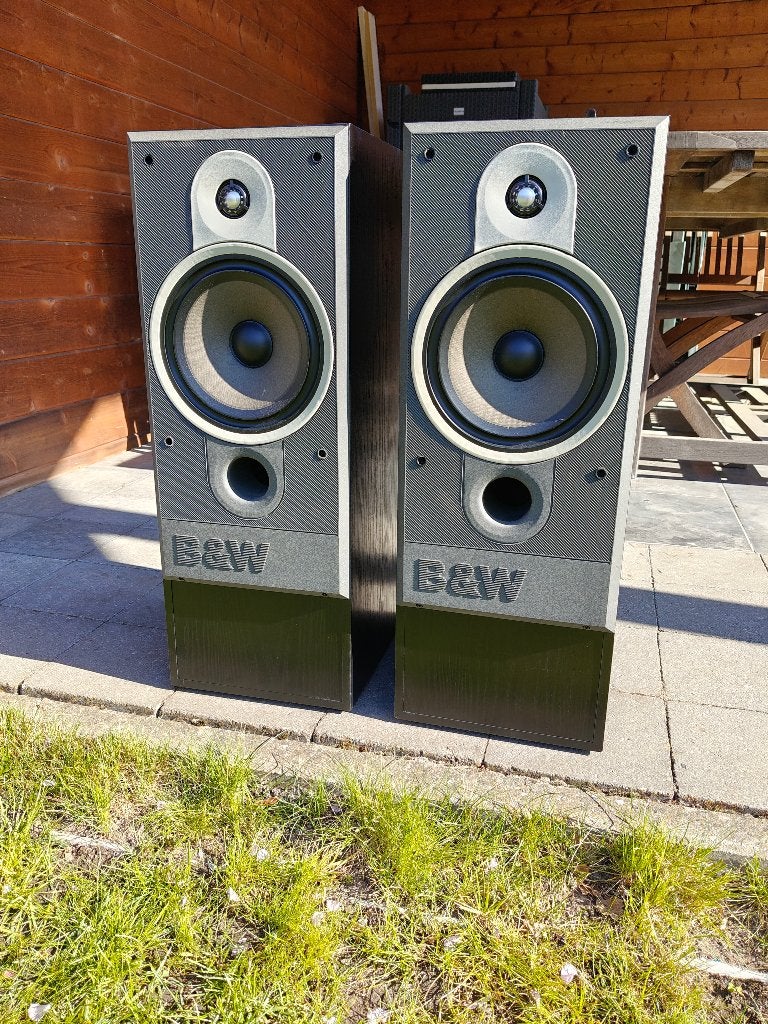

Degelijk vintage speakerboxen die er als nieuw uitzien. Deze set werd uitwendig en intern gereviseerd. Het resultaat is een TOP geluid met mooi neutraal midden en fijn hoog. Het laag is netjes strak en heeft body zodat contrabassen echt voor u staan. De set is te beluisteren. De zwarte frontjes zijn nieuw bespannen.
Ik heb bijpassende vintage versterkers, platenspelers ect. Alle revisies/upgrades en herstellingen gebeuren in eigen atelier. Met muzikale groet. Johan Cools 0495 597514

● The DM570 construction consists of a one piece moulded baffle design – in which components are exactly appropriate to the size and expected performance.
A performance guided to perfection through the use of CAD, finite element analysis and laser interferometry techniques.
● The two-way front vented system has a specially designed 8in bass/midrange driver of the
highest sophistication incorporating a high temperature Kapton voice coil which effectively
winds up to increase power handling.

● B&W's Tweeter technology ensures that the sound remains focused and time sensitive and
that the stereo image is presented with unparalleled three dimensional accuracy.
● The cabinets feature a specially designed high density front baffle which achieves almost
Matrix-like stability in strengthening overall enclosure construction. The bevel edges of the front
moulding reduce diffraction and improve dispersion.
● The crossover components use heavy gauge wire throughout and new drivers guarantee not
only high reliability but ensure that top specifications are met.

Drive Units
Frequency Response
1 x 26mm high-frequency with
aluminium dome, 26mm coil on
aluminium former, wound with polymide resin and heat cured
1 x 200mm bass/midrange with
composite short fibre cone, 30mm coil on Kapton® former, wound with polymide resin and heat cured
55Hz – 20kHz ± 2.5dB on reference axis
Sensitivity 91dB spl(2.83V 1m)
Nominal Impedance 8 ohms
Power Handling 10W – 120W
Dimensions
Height: 634mm Width: 236mm
Depth: 302mm
