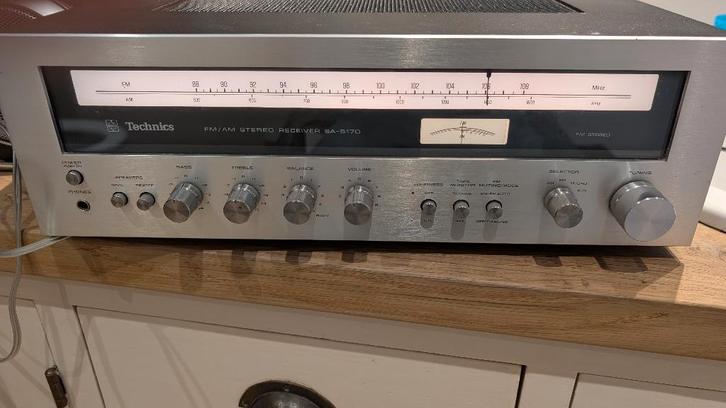

Mooie Technics receiver in zeer nette staat

technisch volledig in orde, geen gekraak en alle lampjes in orde

INFO:



Manufacturer: Technics

Model: SA-5170

Year of manufacture: around 1977

Made in: Japan

Color: silver (SA-5170), brown (SA-5170K)

Remote control: no

Power consumption: 300 W

Dimensions: 420 x 142 x 295 mm (WxHxD)

Weight: 7,4 kg

Original price approx.: 900 DM


Technical Data
Amplifier
Continuous power (1 kHz / 20-20.000 Hz)
8 Ohm: 2x 27 W / 2x 25 W 4 Ohm: 2x 30 W / 2x 26 W
Dynamic power

8 Ohm:

4 Ohm:


Total harmonic distortion: 0.5%Attenuation factor:Frequency Response:

20 - 20,000 Hz (±0.5 dB).

Power bandwidth: 7 - 50,000 Hz (-3 dB)


Signal-to-noise ratio:External voltage spacing: (at rated power).

Phono: 65 dB


Aux: 80 dB
Stereo channel separation:Tone control:

Bass: 50 Hz, ±10 dB


Treble: 10 kHz, ±10 dB
Loudness: yesHigh Filter: noLow Filter (Subsonic): noMute: FM MutingDirect/Line-Straight: no

Tuner
Reception: FM, MWFrequencies:

FM:

MW:


Frequency response:

FM: 20 - 15,000 Hz (+1/-2 dB).


Input sensitivity:

FM: 1.9 µV (300 ohms), 0.9 µV (75 ohms).

MW: 30 µV, 300 µV/m


Distortion factor:


FM: 0.3% (stereo)


Signal-to-noise ratio:Signal-to-noise ratio:

FM: 55 dB (stereo)


Channel separation:

FM: 42 dB


Selectivity:

FM: 65 dB

MW: 30 dB


Equal wave selection:

FM: 1.0 dB


Spurious wave selection:Image frequency attenuation:

FM: 65 dB


IF attenuation:


VHF: 80 dB


AM suppression: 50 dB
