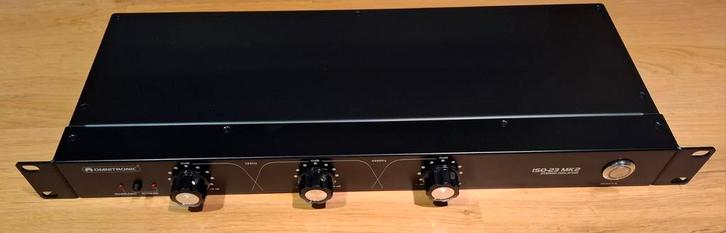

Omnitronic ISO-23 MK2 DJ Isolator nieuw in doos

3-band frequency isolator with vintage rotary knobs for DJsWith the Omnitronic ISO-23 MK2 frequency isolator DJs get an effective tool for creative sound shaping in the club or studio. Using high-grade components such as long-life ALPS RK27 potentiometers, the rack-mounted isolator has excellent sound characteristics. The large, smooth rotary knobs enable DJs to radically boost or cut low, mid or high frequencies, making it easy to create instrumental or a cappella versions. The isolator provides XLR and RCA connectors and features a bypass switch for bridging.

3-band frequency isolator with kill cut and bypass for DJs

3-band frequency isolator with dedicated boost and kill cut for DJs
Kill cut feature enables DJs to completely remove low, mid and high frequencies for amazing mixing
Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
1-channel stereo version
Control range: kill to +9 dB
Lows: 20 Hz – 300 Hz
Mids: 300 Hz – 4 kHz
Highs: 4 kHz – 20 kHz
Bypass switch
Balanced and unbalanced inputs/outputs (XLR/RCA)
Incl. mounting brackets for 483 mm rack installation (1 U)
Housing design: (19″) 48.3 cm rack installation 1 U
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 12 W
Gain: – ? to + 9 dB
Connections: Input: 2 x line via 3-pin XLR
Input: 2 x line via RCA (f) mounting version
Output: 2 x line via 3-pin XLR
Output: 2 x line via RCA (f) mounting version
Max. level: Input: +22 dBu
Housing design: (19″) 48.3 cm rack installation 1 U
Width: 48.3 cm
Height: 4.45 cm
Depth: 14.5 cm
Weight: 2.50 kg
Lows: 20 Hz – 300 Hz
Mids: 300 Hz – 4 kHz
Highs: 4 kHz – 20 kHz
