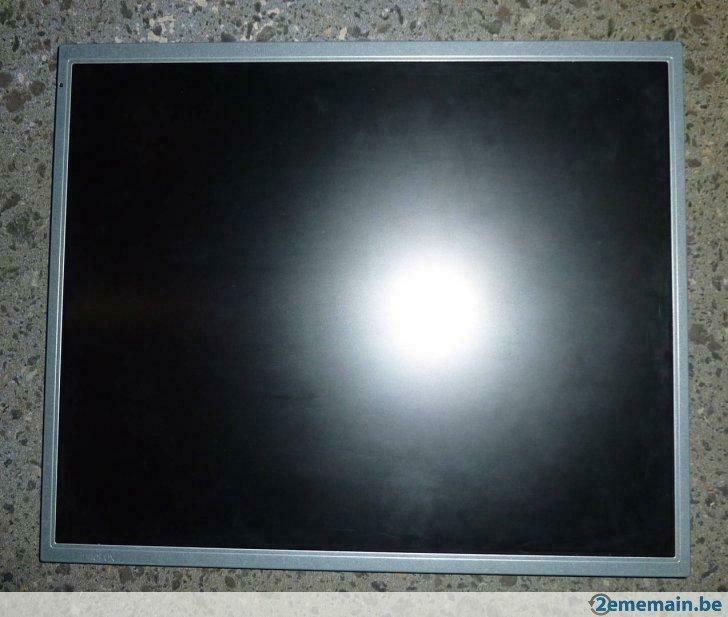

Dalle LCD INNOLUX MT170EN01 V.7

Panel Brand : INNOLUX
Panel Model : MT170EN01 V.7 [Compatible Model] 5 Compatible model
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 17.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive [[Panelook copyright, copy is strictly prohibited] IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA]
Active Area : 337.92×270.336 mm
Outline : 358.5×296.5×17.5 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC) , CIE1931 72%
Response Time : 2/6 (Typ.)(Tr/Td)
Viewing Angle : 75/75/75/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz [[Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit]
Lamp Type : 4 pcs CCFL [8S6P: 8 Serial, 6 Parallel] Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

Etat: Utilisé
