Années 70. Fonctionnel.
Esthétiquement très bien.
Juste petit faux contact lumière intérieur.

https:www.manualslib.com/manual/4232209/Sansui-Tu-519.html?page=1#manual

Spécifications techniques

• No. de transistors
• Semi-conducteurs présents
• Semi-conducteurs
• Principe général
• Super hétérodyne (en général)
• Gammes d'ondes
• PO et FM
• Particularités
• Equipement HIFI
• Tension / type courant
• Alimentation Courant Alternatif (CA) / 100; 120; 220; 240 Volt
• Haut-parleur
• - Pour casque ou amplificateur BF
• Matière
• Boitier métallique
• De Radiomuseum.org
• Modèle: Servo Locked Tuner TU-519 - Sansui Electric Co., Ltd.;
• Forme
• Appareil d'étagère
• Dimensions (LHP)
• 430 x 168 x 402 mm / 16.9 x 6.6 x 15.8 inch
• Remarques

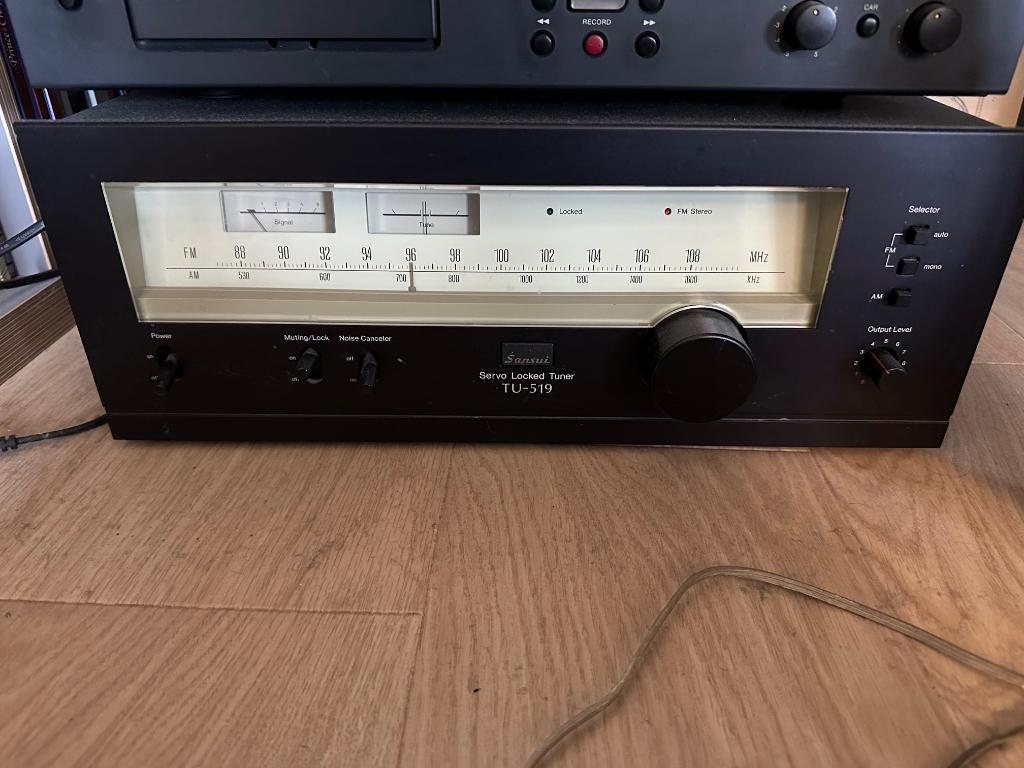

• A hi-fi AM/FM stereo tuner with an analogue dial housed in a black metal case. Supplied with front rack handles which can be screwed onto the sides. With Signal and Tuning meters, indicators for FM Stereo and Locked, rotary Tuning and Output Level controls, on/off switches for Power, Muting/Lock and Noise Canceller, Selector push buttons for FM Auto and FM Mono and for AM. On the back, an adjustable AM ferrite bar antenna, terminals for AM and FM antennae and Ground an RCA phono Line Output sockets.

Specification

FM Section
88 to 108MHz
Usable Sensitivity
Mono IHF 9.8dBf (1.7µV), DIN 1.0µV
Stereo IHF 16.5dBf
50dB Quieting Sensitivity
Mono 13.5dBf, Stereo 36.0dBf
S/N ratio at 65dBf
Mono 81dB, Stereo 76dB
Distortion (at 65dBf)

Mono
Stereo
< 0.1% at 100Hz, < 0.08% at 1kHz, < 0.1% at 6kHz
< 0.1% at 100Hz, < 0.08% at 1kHz, < 0.1% at 6kHz
Alt. channel selectivity
60dB (at 400kHz)
Capture ratio
1.0dB
Image response ratio
80dB (at 98MHz)
Spurious response ratio
85dB at 95MHz
Stereo separation
35dB at 100Hz, 45dB at 1kHz, 35dB at 10kHz
Frequency response
30Hz to 15kHz +0.2dB,-0.5dB
Antenna input impedance
300Ω balanced, 75Ω unbalanced
AM Section
530 to 1,600kHz
Usable sensitivity
47dB/m (220µV/m) (Bar antenna)
Selectivity (± 10kHz)
35dB
S/N ratio
50dB
Output level
0 to 0.775V
Versions/Power requirements
General Export / 100, 120, 220, 240V AC 50/60Hz
USA and Canada / 120V AC 60Hz

Power consumption: 15 Watts
Dimensions with rack handles fitted (WHD) : 482 x 168 x 417 mm

• Poids net
• 7.8 kg
• Auteur
• Modèle crée par Howard Craven.µ
