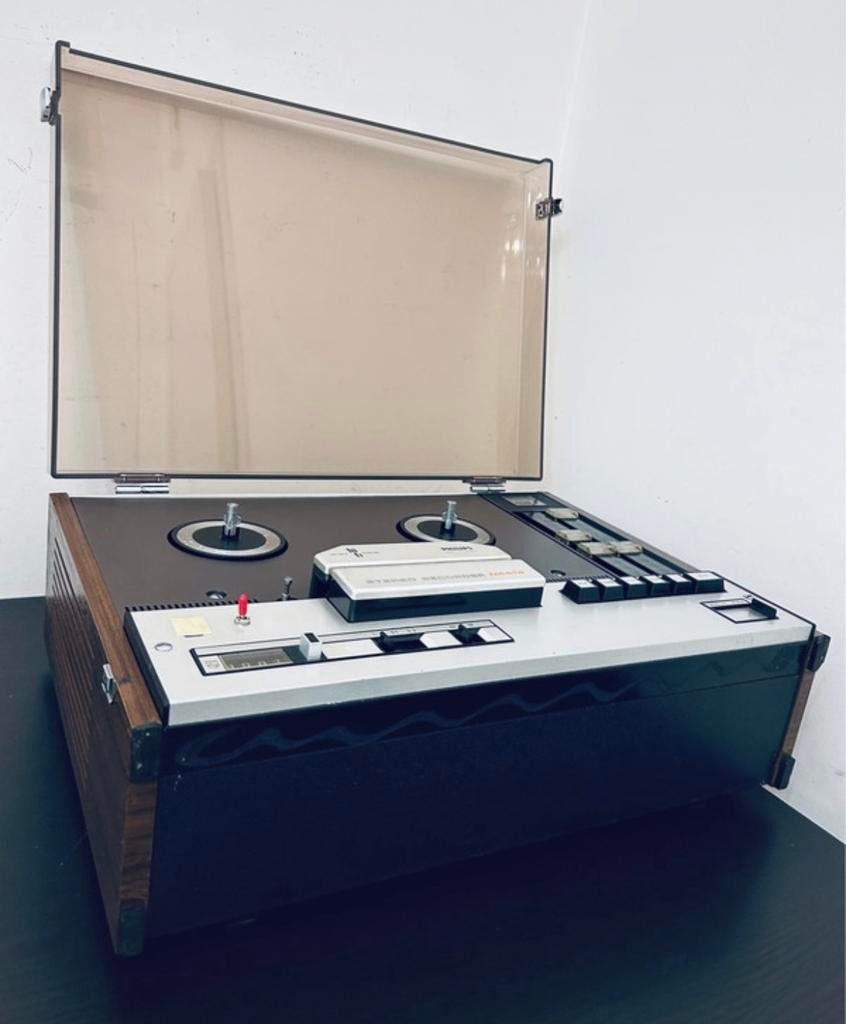

Manufacturer: Philips
Model: N4414
Type: Reel tape with built-in speakers
Years of manufacture: 1972 - 1975
Manufactured in:
Color: Silver / wood decor
Remote control: Cable remote control N-6718 optional
Power consumption:
Dimensions (WxDxH): 480 x 180 x 330 mm.
Weight: 9 kg
Original price approx.: 798 DM
New price remote control: 30 DM

Connections

Number of inputs:
2x microphone: 0.2 mV, 2 kOhm
Phono crystal: 100 mV, 1 MOhm
Radio: 2 mV, 20 kOhm
Number of outputs: 3
Line Out: 1 V, 50 kOhm
Monitor: 1 V, 50 kOhm
Loudspeaker:
Built-in: 2
External: 4 - 8 Ohm


Technical Data

Max. Bobbin diameter: 18 cm
Drive: 3 motors
Heads: 2, one erase head with double slit and one combined record/playback head
Tracks: 4
Tape speeds: 9.5 cm/s / 19 cm/s
Synchronisation fluctuations:
at 9.5 cm/s: 0.20%
at 19 cm/s: 0.15%
Overall frequency response:
at 9.5 cm/s: 40 - 15,000 Hz
at 19 cm/s: 40 - 18,000 Hz
Signal-to-noise ratio: > 48 dB
Spurious signal-to-noise ratio:
Distortion factor:
Equalization:
Crosstalk attenuation:
Cancellation attenuation:
Premagnetization and cancellation frequency:
Amplifier: 2 x 3 W sine wave
