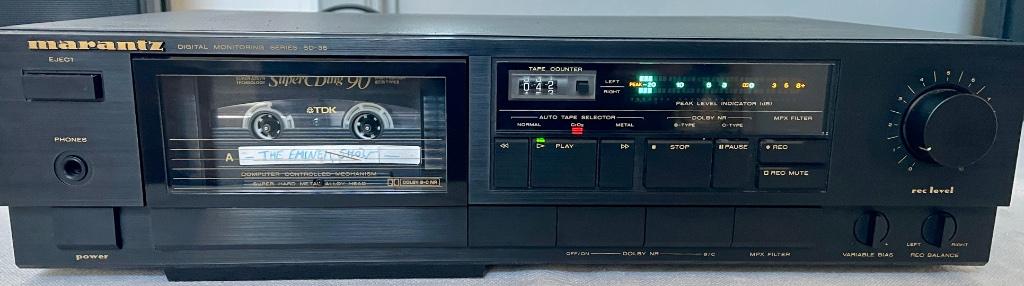

• Digital Monitoring Series SD-35 - Marantz Sound United LLC;
• -Recorder or Player  Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 100 x 260 mm

• Notes
• A hi-fi stereo cassette tape deck. With high slew rate
•  ceramic damped

rate OP-amps, ceramic damped capacitors, high grade Dolby circuit. Super hard metal alloy heads, fast acting fluorescent peak level meters. Logic feather touch super silent mechanism, Dolby B and Dolby C noise reduction, digital real time counter, auto tape selector, auto space, record mute, MPX Filter and quick rewind. Rotary controls for Record Level, Variable Bias and Record Balance. Jack for headphones, RCA phono sockets for Line Input and Line Output.
 Style Front loadTape Drive SystemSingle Capstan Drive Cartridge Compact cassetteTrack System Compatible

• Stereo 4-track 2-channel
• Tape Speed 4.75 cm/sec. 2 Head System Composition
• Rec/Play: Super Hard Metal Alloy

Erase: Dual Gap Ferrite

•  2 Motor System Capstan: DC Servo Motor

 DC Motor Overall Frequency Response at - 20dB

• Tape
• Normal tape20Hz-17kHz
• Cr02 20Hz-18kHz
• Metal Tape 20Hz-19kHz
• Signal-to-Noise Ratio: Dolby B/C (ON) Dolby (OFF)
• 65/74dB 57dB
• Wow and Flutter DIN WTD0.09%
• Outputs Line Level / Impedance 50mV/100Ω
• Input Headphone Level / Impedance 500mV/3.3kΩ
• Line Sensitivity/Impedance70mV/40kΩ
• Fast Forward Time 95 sec. (C-60)

Power Consumption: 20 Watts

• Net weight 4.3 kg
• Made in Japan
