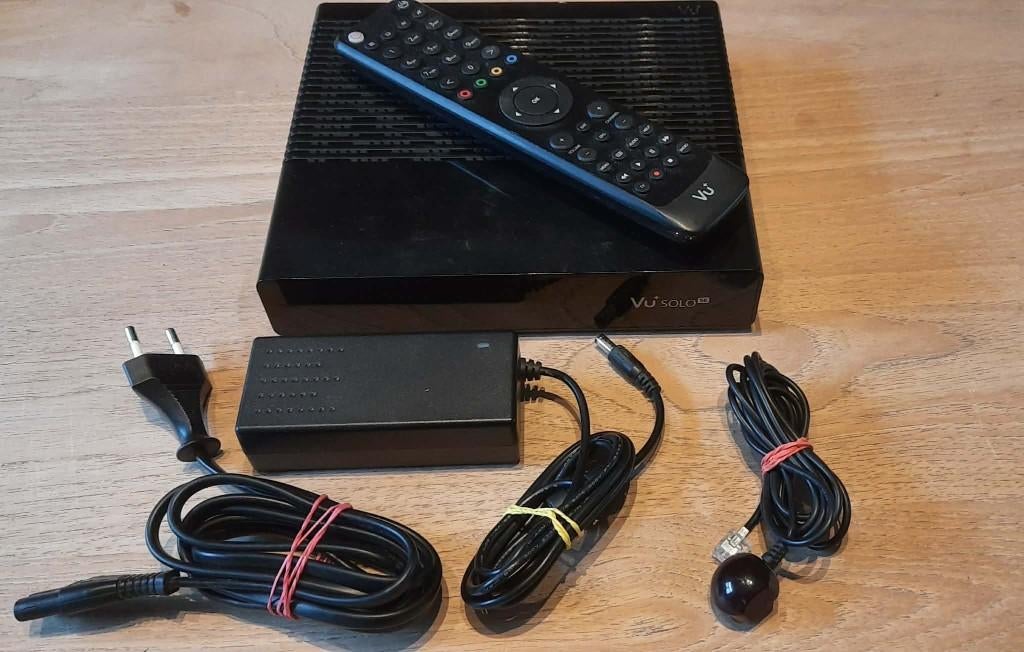

Démodulateur Linux Vu+ Solo SE V2 Full HD Tuner DVB-S/S2 flashé avec la dernière version de OpenATV (7.6)

Vu+ Solo SE V2 Technical Highlights:

• 1300 MHz Dual Core Mips processor
• Plug & Play Tuner Slot for (DVB-S2, DVB-C/T, DVB-C/T/T2)
• 512MB Flash
• 1 x DVB Common Interface slot
• 1 x Smartcard-Reader (Xcrypt)
• 2 x USB
• 10/100 Mbit Ethernet Interface
• SPDIF audio output optical (digital)
• 1 x HDMI 1.4 video / audio output (digital)
• 1 x RCA video output
• 2 x Audio output (L / R) RCA (analog)
• unlimited channel lists for TV / Radio
• EPG (electronic program guide) support
• Support of Bouquet lists
• OSD in many languages and skin-support
• automatic / manual channel search
• DiSEqC 1.0/1.1/1.2, USALS
• External 12V power supply
• power switch

Vu+ Solo SE V2 Specifications:

• DVB-S2 tuner
• Input Frequency Range 950 .. 2150 MHz
• Input Level - 65 dBm ... - 25 dBm
• Tuner Input Connector F-Type female
• Input Impedance 75 Ohm
• AFC capture range + / - 3.5 MHz
• Demodulation QPSK and 8PSK
• FEC Viterbi and Reed-Solomon
• Viterbiraten 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
• Roll-off Factor 35%

Common Interface:

• Common-Interface Power Consumption max. 0.35 A/5V

Video decoding:

• Video Compression MPEG-2 / H.264 and MPEG-1 compatible
• Video Standard PAL G / 25 Hz, NTSC
• 4:3 / 16:9
• Letterbox for 4:3 TV-Device

Output Digital:

• Output Level 0,5 Vss on 75 Ohm
• Sampling frequencies of 32 kHz, 44.1 kHz, 48 kHz
• S / PDIF-Output optical, coaxial (AC3)

Audio coding:

• MPEG-1 audio compression and MPEG-2 Layer I and II, MP3
• Audio Mode Dual (main / sub), Stereo
• Sampling frequencies of 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Analog output:

• Output Level L / R 0,5 Vss on 600 Ohm
• THD> 60 dB (1 kHz)
• Crosstalk <-65 dB

Video parameter:

• Input Level FBAS 1 Vss + / - 0.25 dB on 75 Ohm

Ethernet:

• 100/10 MBit compatible interface

USB:

• USB 2.0 port (2x)

LNB power supply DVB-S2 Tuner:

• LNB Current 400mA max. , Short-circuit proof
• LNB Voltage horizontal "no load 19.5V" 17,6 V at 400mA
• LNB Voltage vertical "no load 14.5V" 11,8 V at 400mA
• LNB is switched off in standby mode

Control of the satellite position:

• DiSEqC 1.0/1.1/1.2 and USALS - Rotor Control

Power consumption:

• <13W (in operation, with LNB)
• <12W (in operation, without LNB)
• <0.5 W (Deep-Standby-Mode)

External power supply:

• entrance: 110-240V AC / 50-60Hz / 1,0 A
• exit: 12V = / 3,5 A

General:

• Ambient temperature +15 ° C. .. +35 ° C
• Humidity <80%
• Dimensions (W x D x H): 211 mm x 185 mm x 40 mm
