in nieuwe staat
Klinkt fantastisch en alles is origineel.
52 kilo /set/
200 watt per kanaal
met omvormer 230V naar 100V

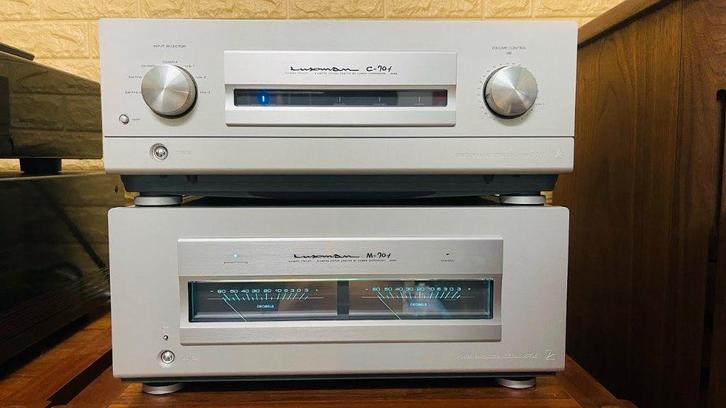

Luxman
Model: C-70f
Type: Stereo preamplifier
Years of manufacture: 2003 - 2007
Made in: Japan
Color: Front aluminum silver, housing cover gray
Power consumption: 23 W
Dimensions: 467 x 187 x 435 mm
Weight: 22.6 kg
New price approx.: 450'000 Yen (Japan 2003), corresponds to about 6'800 Euro

Connections
Number of inputs:Unbalanced:

• CD / SACD: 250mV / 50kOhm

CD / DVD: 250mV / 50kOhm

• Line 1 - 3: 250mV / 50kOhm

Balanced:

• XLR-1 & 2: 250mV / 100kOhm

Number of outputs:Unbalanced:

• Tape Rec 1, 2: 1V / 300 Ohm, max. 7.5V
• Monitor 1, 2: 1V / 300 Ohm, max. 7,5V
• Output 1, 2: 1V / 300 Ohm, max. 7.5V

Balanced:

• Output 1, 2: 1V / 600 Ohm, max. 7,5V

Remote 1, 2:

Technical Data
Frequency response:

• 20 Hz - 20'000 Hz, + 0 dB, - 0.1 dB
• 10 Hz - 100'000 Hz, + 0 dB, - 2,2 dB

Distortion factor: < 0.005 % at 1 kHzSignal-to-noise ratio: 119 dBTone control:

• Bass: ± 10 dB

Treble: ± 10 dB
Line Straight: yes

Luxman
Model: M-70f
Type: Stereo power amplifier
Years of manufacture: 2003 - 2007
Made in: Japan
Color: Front aluminum silver, housing cover gray
Power consumption: 428 W
Dimensions: 467 x 212 x 440 mmWeight: 29 kg
New price approx.: 450'000 Yen (Japan 2003), corresponds to about 6'800 Euro

Connections
Number of inputs: 2

• Input sensitivity: 1V / 200W (8 Ohm)
• Input impedance:
• Asymmetrical: 33 kOhm
• Balanced: 66 kOhm

• Remote On / Off

Number of outputs:

• 1 pair of speakers

Technical Data
Continuous power (at distortion factor)

• 8 Ohm: 2x 200 W

4 Ohm: 2x 300 W Continuous power BTL

• 8 Ohm: 1x 600 W mono
• 4 Ohm:

dynamic power

• 8 Ohm:
• 4 Ohm:

Total harmonic distortion:

• 0,004% (1kHz / 8 Ohm)
• 0.08% (20Hz - 20 kHz, 8 Ohm)

Attenuation factor:Frequency Response:

• 20Hz - 20Khz (+1 / -0.1dB).
• 10Hz - 100Khz (+0 / -1dB)

Signal-to-noise ratio: 118dB
