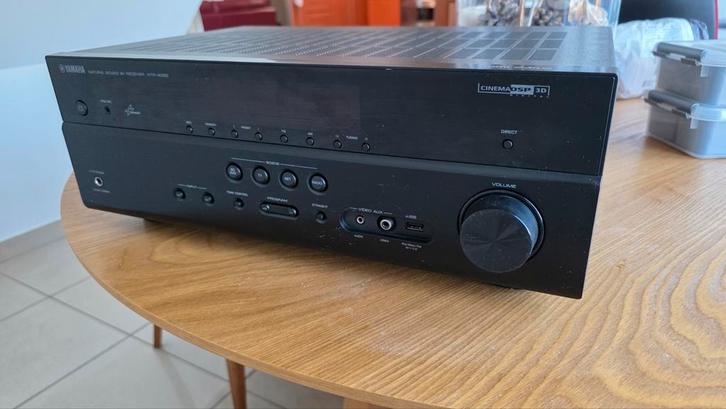

Yamaha av surround versterker
Amplifier Section
Channel:
5.1

Rated Output Power (1kHz, 1ch driven):
115W (8ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven):
80W (8ohms, 0.09% THD)

Dynamic Power per Channel (8/6/4/2 ohms):
110/130/160/-W

Surround Sound Processing
CINEMA DSP:
Yes (3D)

DSP Programs:
17

Compressed Music Enhancer:
Yes

Virtual Presence Speaker:
Yes

SILENT CINEMA / Virtual CINEMA DSP:
Yes

Dolby TrueHD:
Yes

Dolby Digital Plus:
Yes

DTS-HD Master Audio:
Yes

Audio Features
YPAO sound optimization:
Yes

Adaptive DRC (Dynamic Range Control):
Yes

Initial Volume & Maximum Volume Setting:
Yes

Audio Delay:
Yes (0-250 ms)

192kHz/24-bit DACs for all channels:
Yes (Burr-Brown)

Video Features
HDMI 3D passthrough:
Yes

HDMI Audio Return Channel:
Yes

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync:
Yes

4K Pass-through:
Yes

Extensive Connection
HDMI Input/Output:
4 / 1

HDMI CEC:
Yes (SCENE, Device Control)

USB Input:
iPod/iPhone/iPad, USB Memory, Portable Audio Player

Network Port:
With access to vTuner Internet Radio service and DLNA 1.5 Compatible.

Front AV Input:
USB/Mini Jack/Composite

Digital Audio Input/Output: Optical:
2 / 0

Digital Audio Input/Output: Coaxial:
2 / 0

Analog Audio Input/Output:
4 (front 1) / 1

Component Video Input/Output:
2 / 1

Composite Video Input/Output:
5 (front 1) / 1

Preout:
Subwoofer

Headphone Output:
1

Connectivity
AirPlay:
Yes

User Interface
App Control:
Yes (iPhone/iPad/Android phone/tablet)

On-screen display:
Yes (Color OSD)

SCENE:
SCENE (4 sets)

Remote Control Unit:
Yes (Preset)

Tuner Section
FM/AM Tuner:
Yes

General
ECO mode:
Yes

Standby Power Consumption (IR only):
<0.1W

Auto Power Down:
Yes

Dimensions (W x H x D):
17-1/8" x 6-3/8" x 12-3/8"

Weight:
17.9 lbs.

Shipping Dimensions (W x H x D):
15-5/8" x 9" x 20-7/8"

Shipping Weight (lbs.):
20.94 lbs.
