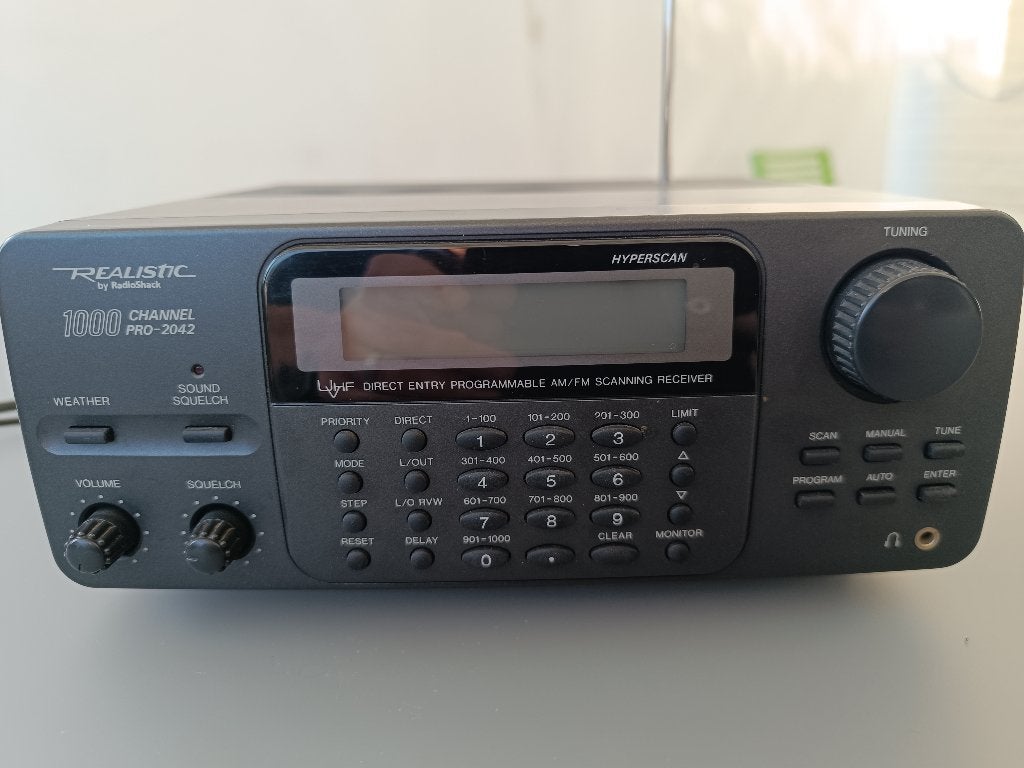

Deze scanner is in perfect werkende conditie zonder gebruikssporen en van niet roker.

De display vertoond geen gebreken en er is een discriminator poort aanwezig.

Programmatie tot 1000 kanalen is gemakkelijk op het toestel zelf. Er is tevens een Nederlandstalige handleiding en een telescopische binnenhuis antenne

Hij scant 50 kanalen per seconde !

Type:
HF/VHF/UHF receiver/scanner
Frequency range:
Europe and Australia
25-520 / 760-1300 MHz
Tuning steps:
5 / 12.5 / 50 KHz (Depending on band segment)
Frequency stability:
? ppm
Mode:
AM / FM / WFM
Channels / memory management:
1000 regular @ 50 channels per second
100 monitor/auto store
1 priority
10 search ranges
Power supply:
Mains: 230 VAC (Europe) or 240 VAC (Australia)
or 13.8 VDC (Male barrel jack, center positive)
Current drain / power consumption:
Max 18 W @ 230 VAC
Max 725 mA @ 13.8 VDC
Antenna impedance / connector:
50 ohm / BNC
Dimensions (W*H*D):
232*90*210 mm (9.13*3.54*8.27")
Weight:
2 Kg (4.41 lb)
Other features:
HyperScan. Sound squelch. Tape out jack. 10 dB attenuator.
RECEIVER SECTION
Receiver system:
Triple conversion superheterodyne
1st IF: 609.005-613.5 MHz
2nd IF: 48.5 MHz
3rd IF: 10.7 MHz (WFM), 455 KHz (AM/FM)
Sensitivity:
AM (20 dB S/N @ 60% modulation)
25-520 MHz: 2 uV
760-1000 MHz: 2 uV
1000-1300 MHz: 5 uV
FM (20 dB S/N @ 3 KHz deviation)
25-520 MHz: 0.5 uV
760-1000 MHz: 0.5 uV
1000-1300 MHz: 3 uV
WFM (30 dB S/N @ 45 KHz deviation)
25-520 MHz: 3 uV
760-1000 MHz: 3 uV
1000-1300 MHz: 10 uV
Squelch sensitivity:
AM/FM (Threshold)
25-520 MHz: 0.5 uV
760-1000 MHz: 0.5 uV
1000-1300 MHz: 3 uV
WFM (Threshold)
25-520 MHz: 3 uV
760-1000 MHz: 3 uV
1000-1300 MHz: 15 uV
Noise figure:
Selectivity:
AM
12 KHz (-6 dB)
24 KHz (-50 dB)
FM
20 KHz (-6 dB)
40 KHz (-50 dB)
WFM
300 KHz (-6 dB)
600 KHz (-50 dB)
Image rejection:
AF output power / speaker:
1.3 W at 10% distortion / 8 ohm
External speaker connector:
TS "Minijack" (3.5 mm)
