NIEUWE MODEL 2025 MET EXTRA FAN FT8

AANBIEDING GB ANTENNES 35 JAAR

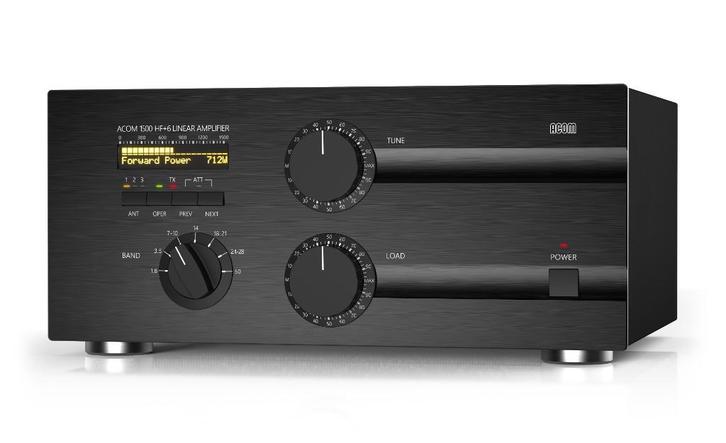

ACOM 1500 TOP CLASS LINEAR AMPLIFIER
DEZE IS LEVERBAAR

NU MET EXTRA FAN OP DE ACHTERKANT VOOR FT8

LET OP BIJ BESTELLEN DE VERZENDKOSTEN ZIJN 89,00 EURO, EXTRA VERZEKERING IS 15 EURO. OF BEL ONS EERST OP.
AFHALEN IS DE VOORKEUR I.V.M.HET GEWICHT EN i.V.M.SCHADE TIJDENS TRANSPORT INCLUDED  + BLOWER FOR RTTY/FT8
Frequency Coverage

• All amateur bands from 1.8 through 54 MHz:
• 1.800 - 2.000 MHz (160 m band)
• 3.500 - 4.000 MHz (80 m band)
• 7.000 - 7.300 MHz (40 m band)
• 10.100 - 10.150 MHz (30 m band)
• 14.000 - 14.350 MHz (20 m band)
• 18.068 - 18.168 MHz (17 m band)
• 21.000 - 21.450 MHz (15 m band)
• 24.890 - 24.990 MHz (12 m band)
• 28.000 - 29.700 MHz (10 m band)
• 27.000 - 28.000 MHz (11 m band)
• 50.000 - 54.000 MHz (6 m band)*

*

(*) Please, refer the applicable regional band plans and laws for specific allocations and limitations;

In specific business cases, extensions or changes of the frequency coverage can be discussed, but this must be agreed upon before ordering. In any case, this is not the producer's obligation and can not be against local rules and laws.

Power Output

1500 W PEP or 1200 W continuous carrier, no mode limit;

Intermodulation Distortion*

Better than 35 dB below PEP rated output;

Hum and noise

Better than 40 dB below rated output;

Harmonic Output Suppression

• *
• 1.8-21.5 MHz - better than 50 dB below rated output;
• 24-54 MHz - better than 66 dB below rated output;
• Input and Output Impedances
• Nominal value: 50 Ohm unbalanced, UHF (SO-239A) type connectors;
• Input circuit: broadband, SWR less than 1.3:1, 1.8-54 MHz continuously (no tunings, no switching);
• Bypass path SWR less than 1.1:1, 1.8-54 MHz continuously;
• Output (antenna) impedance matching capability: SWR up to 3:1 or higher;
• RF Gain*
• 13 dB typically, frequency response less than 1 dB (60-85 W drive power for rated output); With 4CX1000A Tube
• Mains Power Supply Voltage
• 85-132 VAC / 170-264 VAC (100, 110, 120, 200, 210, 220, 230 & 240 V nominal taps, +10% -15% tolerance), 50-60 Hz, Single phase;

Mains Power Consumption

• *
• Up to 3500 VA at rated output from 200/240 VAC mains supply;
• Up to 2400 VA at 1000 W output from 100/120 VAC mains supply;
• Safety and Electromagnetic Compatibility
• Complies with CE safety and electromagnetic compatibility requirements, as well as with the US Federal Communications Commission (FCC) regulations;
• Size & Weight (operating, excluding connected cables)*
• WxDxH: 422x355x195 mm, 26.5 kg (16.7x14.0x7.7 inches, 58.5 lbs.);
• Shipping Size & Weight
• WxDxH: Approx

. 590x490x380 mm, 30.0 kg (23.3x19.3x15.0 inches, 66.2 lbs.);

• Please, contact us for shipment details;

Operating environments

• *
• Temperature range: 0 to +50 degrees Celsius (32 degrees F to 122 degrees F);
• Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
• Height above sea level: up to 3050 m (10000 ft) without output deterioration.

ACOM 1500 HF 160-10m+50MHz+Warc
Frequentie: 1,8~54MHz+Warc:12m+17m+10MHz Europa model Ook 27 MHz
Power 1500W PeP 1200W carrier (ook 50MHz)
Intermodulatie vervorming:beter dan 35dB
Geluid demping :beter dan 40dB
Harmonische onderdrukking:1.8-29,7MHz beter dan 50dB
Harmonische onderdrukking:50-54MHz beter dan 66dB
RF Gain :12,5dB
Drive voor max output: 60-85W SSB / FM-RTTY 40 watt
Antenne aansluiting 3x SO239
Nieuw Front uitlezing
Buis:4CX1000A Nieuw van fabriek
Stroom: 230V-120V
Stroom verbruik: 12-16 Amp
Afmeting: 422x355x195mm
Verzendgewicht: 32,5kg drie dubbel doos 60x55x60cm
Extra Buis 4XC1000A :945,00 euro Nieuw in doos.
Garantie is 2 jaar op de elektronica en 1 jaar op de buis 4CX1000A

Extra te bestellen:
Dustcover los voor Acom 1500 :39,95 euro
Afhalen in de GB Shop in Brielle is mogelijk.
EXTRA TE BESTELLEN:
Extra RCA TX kabel lang:1,20m

Extra RCA TX kabel lang:3,00m

Extra 7 polig Din connector:

Extra losse Fan voor op achterkant Acom 1500: prijs 69,00 euro door de fabriek gemonteerd 189,00 euro.

LET OP DE ACOM WORDT ZONDER STEKKER AAN HET SNOER GELEVERD.

GB ANTENNES & TOWERS Officieel distributeur en service center voor ACOM versterkers
