Eurorack Module

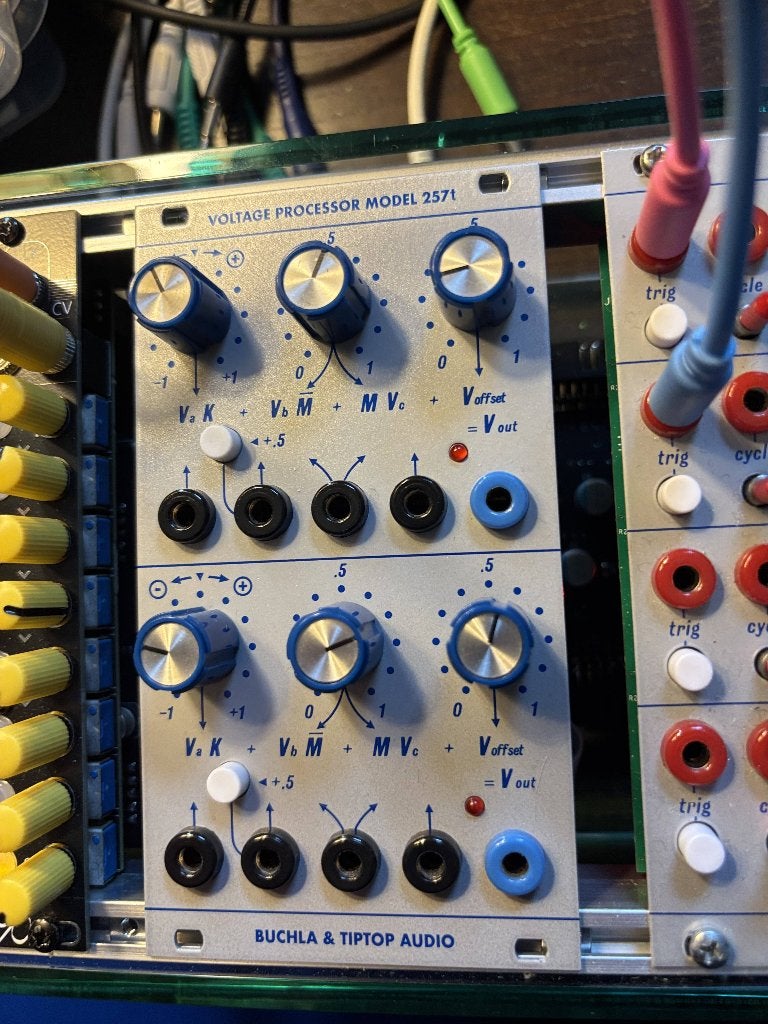

The 257t is essentially divided into two sections (top and bottom), each which contain three voltage processing functions: an attuverter, a CV-controllable crossfader, and an offset generator.

Each of these three processes is summed together, allowing for a wide range of utility voltage processing functions.

The manipulations possible with this module include addition, subtraction, scaling, inversion, and multiplication.

• Dual Voltage processor
• 2 Identical channels, each with 3 inputs for scaling, inverting, mixing and modulating control voltages and audio signals
• Input Va with bipolar attenuator
• Voltage-controlled crossfader (inputs Vb & Vc) with switchable +5 V offset for input Vb
• Sum output with adjustable offset (0 V - 10 V)
• Power consumption: 45 mA (+12 V) / 22 mA (-12 V)
• Width: 14 U
• Depth: 25 mm
