LED driver 24volt 6,3A 150W - 1x Output - IP67 -

• Universal AC input / Full range (up to 295VAC)
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Built-in active PFC function
• Cooling by free air convection
• OCP point adjustable through output cable or internal potential meter
• Suitable for LED lighting and moving sign applications
• IP67 design for indoor or outdoor installations
• Compliance to worldwide safety regulations for lighting

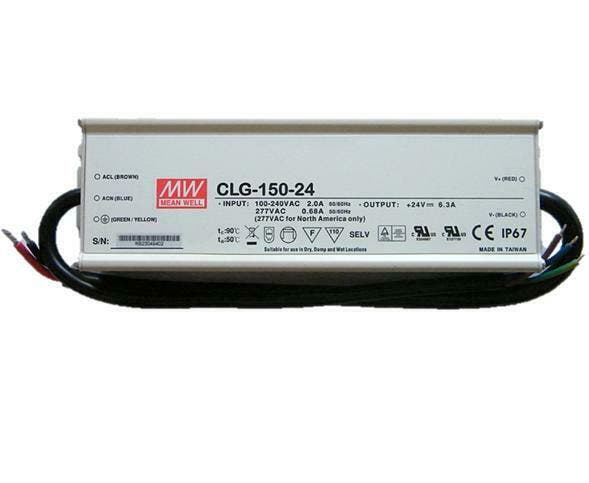

Mean Well CLG-150-24 specifications: AC-DC Single output LED driver Mix mode (CV+CC); Output 24Vdc at 6.3A; IP67, cable output

Specifications

Max. output151 WOutput typeSingleOutput description24V6,3A Power supply typeAC/DC power supplyEnclosure typeEnclosed Type RoHSCompliantSuitable for medicalNoDimmableYes Commodity code85044090Packing quantity12 Net weight (gr)1.020 Width (mm)222Height (mm)39Depth (mm)

68

Input

Input rangePhase(s)90 - 295 VAC1127 - 417 VDC1

Output

VoltageCurrent24 V0 - 6 A
