Nieuw, in originele verpakking, nooit gebruikt.
Weg wegens aanpassing structuur netwerk, waardoor deze niet langer past binnen de architectuur.

Enkel ophalen is mogelijk! (Merelbeke Centrum)

---

Specifications
Technical
CPU Processor

• Quad-Core

Operating Frequency

• 2.2GHz

Memory

• 8GB

Storage

• 16GB

Network Ports (Copper Ports)

• 4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports

Console Port

• 1 x 10/100/1000, RJ-45 Ethernet port

PoE+ Capable Port

• 1 x (802.3af/at) LAN (P1)

Mounting Method

• Wall mount

USB Interface

• 1 x USB 3.0

Security Chip

• TPM

Performance & Capacity
Firewall (SPI Throughput)

• 6.7 Gbps

VPN Throughput

• 1.7 Gbps

Max. TCP Concurrent Sessions

• 625,000 (v1)

500,000 (v2)
Max. Concurrent VPN Tunnels

• 300

Max. VLAN

• 256

Firewall
Firewall Features

• Stateful Packet Inspection

Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services
VPN
Site-to-Site VPN

• Mesh VPN/Hub-and-Spoke

Encryption

• 3DES, AES (256/192/128-bit)

Authentication

• MD5, SHA1, SHA2 (256-bit)

Key Management

• IKEv1 (x-auth, mode-config)

IKEv2 (EAP, configuration payload)
VPN Features

• Site-to-Site VPN

Client VPN
Policy-based VPN
IPsec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
Networking
Operation Mode

• Routed/Passthrough

Multiple WANS

• Dual (WAN 1 & WAN/P3)

Bandwidth Limit

• Per Interface/Per Client

Traffic Load Balancing

• WAN load balancing with WRR

Networking Features

• Static Route

Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Dynamic Routing
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Policy Based Routing
Environmental & Physical
Power

• 54V/1.2A

Operating Temperature

• 0°C to 40°C

Humidity (non-condensing)

• 5 to 95% non-condensing

Package Contents

• Power adapter

Power cord
RJ-45 Console Cable
Wall Mount Kit
Quick Installation Guide
Dimensions & Weights

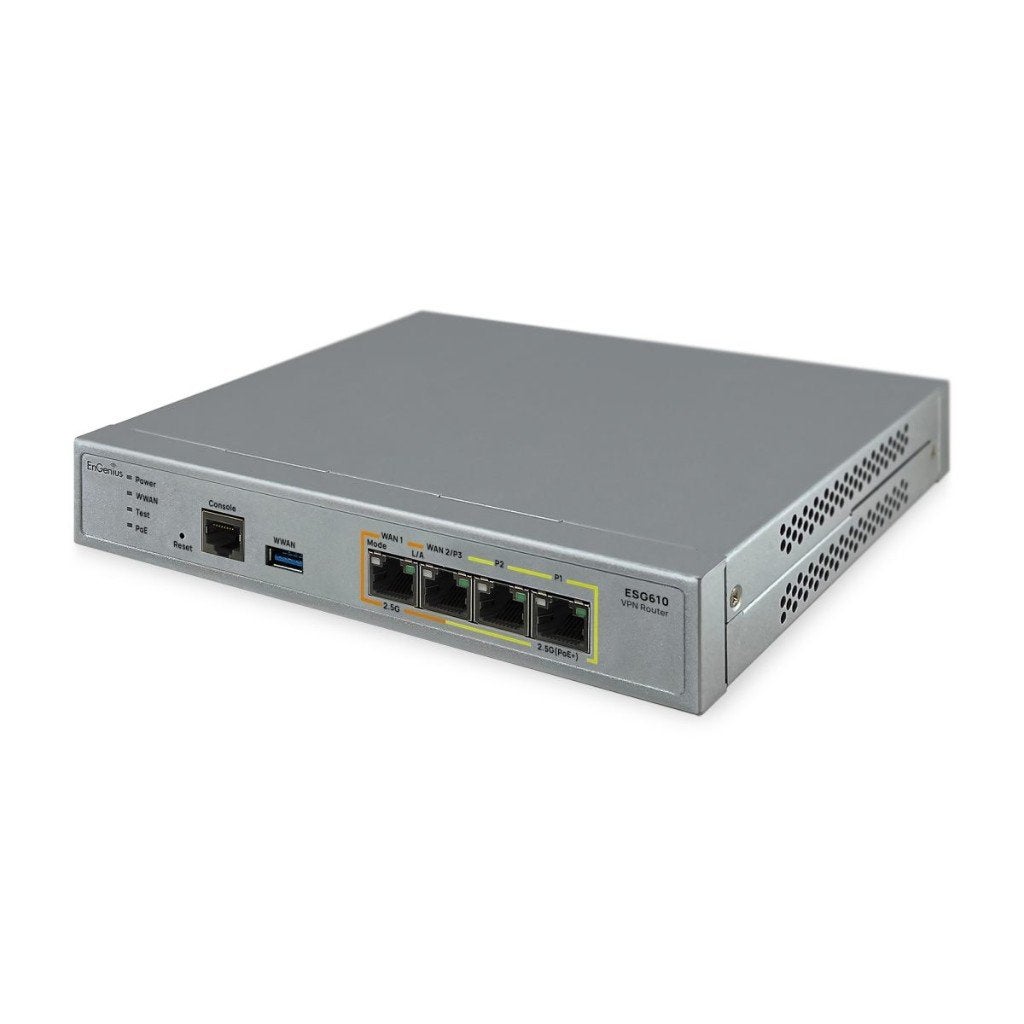

ESG610 Device

• Weight: 2.31 lbs. (1.05 kg)

Width: 8.27” (210 mm)
Length: 7.07” (179.5 mm)
Height: 1.38” (35 mm)
ESG610 Packaging

• Weight: 3.75 lbs. (1.7 kg)

Width: 3.93” (100 mm)
Length: 10.81” (275 mm)
Height: 11.59” (295 mm)
Compliance & Warranty
Regulatory Compliance

• FCC Part 15 (Class B)

IC
CE EMC (Class B)
RCM
BSMI
Warranty

• 5 years

Certifications

• CE

FCC
IC
