elo et1522l 1522l 15 tft finger touchscreen powered usb + k

Categorie

Computers en Software

Monitoren en Beeldschermen

Kenmerken

Conditie:Gebruikt

Beschrijving

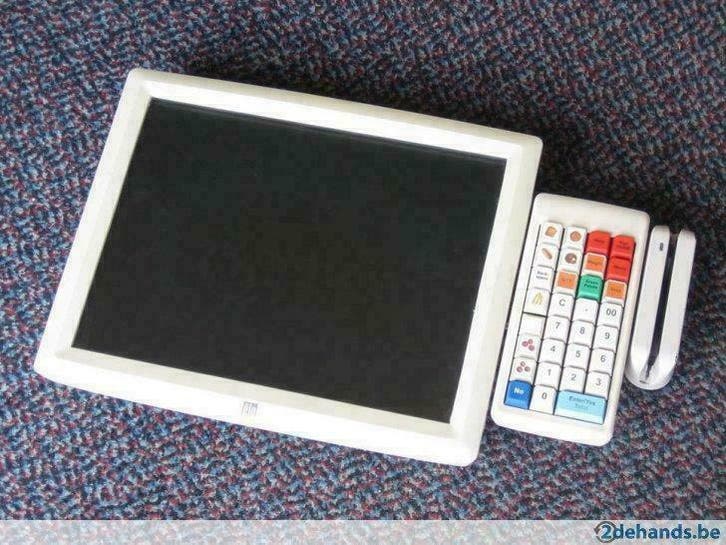

This touchscreen monitor comes WITHOUT stand! Monitor only.



Including: MSR Magnetic Stripe Card Reader + keypad



Interface: Powered USB ( NO Power Supply or powered USB PSU included! )



The housing on the rear of the screen may contain a small crack!



Display Size 15" Diagonal (381 mm) Color Active Matrix TFT Panel
12 x 9" Viewable Area (304 x 228 mm) 4:3
Resolution / Colors 1024 x 768 at 60, 65, 70 or 75 Hz 16.7 million colors
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Brightness

Contrast / Backlight 250 Nits cd/m² LCD (AccuTouch 200, APR 230,
IntelliTouch 230, CarrollTouch 230, Surface Capacitive 213)
500:1 Backlight: 30k hours to half brightness, 50k MTBF
OS Compatibility
Response Time Win 7, XP, Vista, 2000, NT 95/98, QNX, Linux
12 msec
Viewing Angle 140° Horizontal, 120° Vertical
Input Video
Input Frequency Mini DSub 15-Pin VGA
Horiz: 31.5-60.2 kHz Vert: 56.3 - 75 Hz
Speakers Two watt/channel speakers located in display head
Overall Dimensions (WxHxD) 14 x 11.3 x 11" (with stand) (355 x 286 x 278) mm

Touch Screen
Analog Resisitve Touch ScreenTouchscreen sealed to bezel Touchscreen sealed to LCD

I/O Connectors
VGA Video connector Analog
Audio in
Powerd USB

Controls (side) Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controls
Rating / Certification

EMC: CE, C-Tick, FCC, VCCI (Class B)
Safety: CB, CE, cULus, S (Argentina), TÜV T Mark
2 stage DPMS, VESA DDC Plug and Play
Power Supply Powerd USB (NO PSU INCLUDED)
Temperatures

Operation: 0°C ~ 40°C (32 ~ 104° F)
Storage: -20°C ~ 60°C ( -4 ~ 140° F)
Humidity: 20-80% @ 40°C Non-condensing, without touch screen

Conditie: Gebruikt
Levering: Ophalen, Verzenden
