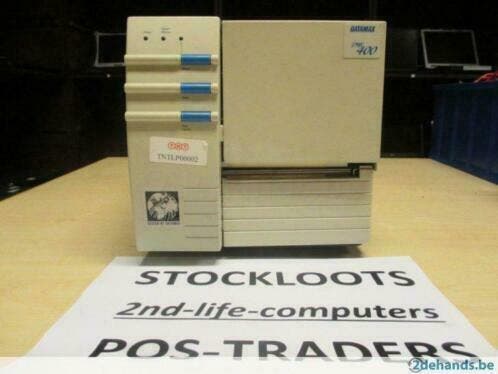

Datamax DMX 400 Thermal Label Direct Barcode Printer

Categorie

Computers en Software

Printers

Kenmerken

Conditie:Gebruikt

Beschrijving

Thermal Printer

BRAND: Datamax

MODEL: DMX400

Features:

Printer type: Thermal Transfer/Direct Thermal
Printing speed: 2" - 4" (51mm - 102mm) per second
Resolution: 203 dpi (8 dots/mm)
Bar code modulus: 5 mil. to 110 mil "X" dimension in picket or
ladder orientations
Maximum Print Width: 4.1" (104mm)
Maximum Media Width: 4.65" (118mm)
Minimum Print Width: .75" (19mm)
Maximum Print Length: 16" (406mm) with standard RAM; up to 50"
(1270mm) with options [28" (710mm) maximum with optional
512K RAM cartridge; 40" (1016mm) maximum with optional 512K
RAM upgrade; 50" (1270mm) maximum with optional 512K RAM
cartridge and optional internal 512K RAM upgrade]
Minimum Print Length: .5" (13mm)
Media Window: Clear side door panel to easily monitor media
supply levels
Media Type: Roll-fed, die-cut, continuous or fan-fold labels, tags or
tickets; most direct thermal or thermal transfer materials
Media Thickness: .0025" to .0100" (.0635mm to .254mm)
Media Sensing: Moveable "see-through" for die-cut labels and
tags; reflective for labels and tags with black stripe sensing
Supply Roll: 8" (203mm) maximum diameter on 1.5" to 3" cores
(38mm to 76mm)
Internal Rewind: Capacity of one half of label backing
Label Backfeed: For use with optional cutter or peel-off mode in
on-demand applications
Ribbons: Industry-standard ribbon cores: 25mm, 38mm, 51mm,
64mm, 76mm, 89mm, 102mm, 110mm, 114mm; 1182' (360m)
length
Bar Codes: Code 39 (used to produce industry standards such as
AIAG, HIBC, LOGMARS, etc.), Interleaved 2 of 5, Code 128
(subsets A, B, and C), Codabar, UPC-A, UPC-E, UPC 2 and 5 digit
addendums, EAN-8, EAN-13, EAN 2 and 5 digit addendums, UPC
random weight, Code 93, Plessey, Universal Shipping Container
Symbology, Code 128 Mod 43, Postnet, UCC/EAN 128 random
weight, and PDF417
Resident Fonts: Nine alpha-numeric fonts from .035"H (.89mm) to
.64" H (16mm) and OCR-A, OCR-B, CG Triumvirate from AGFA in
both Portrait and Landscape orientations (from 6 -48 point sizes)
Character Set: Modified IBM Code Page 850, includes characters
for English and most European, Scandinavian, and Spanish
speaking countries
Font Expansion, Rotation: All fonts expandable vertically and
horizontally up to 24x; fonts can be printed in four directions, 0,
90, 180, 270
Graphics Support: .PCX, .BMP, .IMG files
Reverse Fields: Any font or graphic field can be printed normal or
reverse
Mirror Image: Any font or graphic field can be printed in mirror
Time and Date: Standard
Cartridge Slot: One slot on side panel
Built-In Label Design Software: Stand-alone label creation
capability for Wyse 50, Link terminals or compatibles
Built-In ROM: 1MB, optional internal upgrade to 2MB
Built-In RAM: 512k, 48k available for application software use;
optional internal upgrade to 1MB
Interfaces: RS-232, RS-422, at 300 to 9,600 baud; Twin-Ax/Coax
optional
Power Source: 115, 220/240 VAC, 50/60 Hz available; specify
when ordering
Operating Temperature: 40 F to 100 F (4 to 38 C)
Dimensions: 8.8"H x 9.5"W x 16.6"D (224mmH x 241mmW x
421mmD)
Weight: 23 lbs. (10.4 kg)
Shipping charges = for buyer; We pay for ebay commission.

Including Official Invoice

More information? Call +32-14-699275

Plus d'information? Téléphonez +32-14-699275

Conditie: Gebruikt
