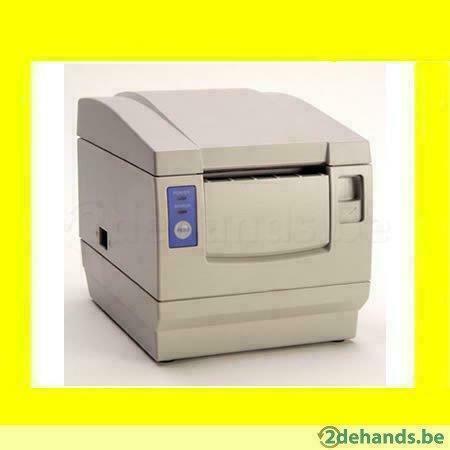

Citizen CBM1000 CBM 1000 POS Thermische Bon Printer RS232
Caractéristiques
Description
Categorie
Computers en Software
Printers
Kenmerken
Conditie:Gebruikt
Beschrijving
Compact, light-weight printer.
Spill resistant top
Drop and load paper
Internal and external power supply option
Flash memory
2 Drawer kick-out
Auto paper cutter
80mm or 58mm paper width
Compatibility (ESC/POS emulation)
Small footprint, compact, light-weight
Color = white
Citizen CBM-1000 Thermal Receipt Printer General Specifications
Printing Method
Line thermal dot printing
Printing Method
72mm / 576 dots, * 1 (54mm / 432 dots)
Dot Density
8 dots/mm, (203dpi)
Print Speed
Approx. 100mm/sec
Number of Columns
80mm paper
Font A: 48/42 Columns
58mm paper
Font B: 64/56 Columns
Font A: 36/30 Columns
Font B: 48/40 Columns
Character Size
1.25mm x 3.00mm (Font A)
0.88mm x 3.00mm (Font B)
Character Types
Alphanumeric, International characters, Code850, Code857,
Code860, Code863, Code865, Code866, Katakana, Windows code
Logo Registration/Printing
Capable of registering user-defined characters and logo into flash
memory.
Bar-Code Type
UPC-A/E, JAN(EAN) 18 columns / 18 columns, ITF, CODE39,
CODE128, CODABAR, CODE93
Line Spacing
1/6" (Approx. 4.23mm)
Paper
Thermal paper roll 80mm (58mm) x 83mm (Max)
Interface
Serial: RS232C
Input Buffer
4K bytes (DIP Switch selectable to 72 bytes)
Drawer Kick-Out Connector
2-Drawer Kick-Out, 1 Drawer Open Indicator
Paper Auto Loading
Drop and Load Paper
Power Supply (Internal/External)
AC100V-240V + 10%
Spec. of AC Adapter
Rated Input: AC100-240V, 50/60Hz, 120VA
Rated Output: DC 24V, 1.8A (Peak 6A)
Type of AC Adapter
CBM1000-RF120, CBM1000-PF120: 31AD-U
CBM1000-FR230, CBM1000-PF230: 31AD-E
Power Consumption
Approx. 50W AVG
External Dimensions (Main body)
Internal Supply: 145mm W x 157mm H x 190mm D
External Supply: 145mm W x 114mm H x 190mm D
Weight
Internal Type
Main Unit: 2.0kg
AC Adapter Type
Main Unit: 1.4kg
Operating Temperature
5 - 40C, 35 - 85% RH
Storage Temperature
-20 - 60C, 10 - 90% RH
Conditie: Gebruikt
