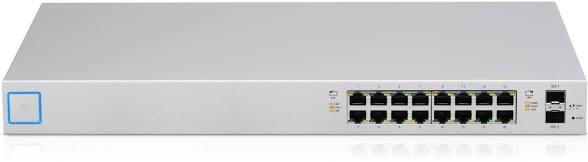

Model: Ubiquiti US-16-150W

Managed PoE+ Gigabit Switch with SFP

The UniFi® Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.

Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.

Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

Features
Non-Blocking Throughput Switching Performance
Gigabit Ethernet RJ45 and SFP+/SFP Ports
Auto-Sensing IEEE 802.3af/at PoE
16x Gigabit RJ45 Ports
2x SFP Ports
1x Serial Console Port
Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Maximum Power Consumption: 150W
Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)
Specifications
Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight:
Rack-Mount Brackets Excluded: 2.80 kg (6.17 lb)
Rack-Mount Brackets Included: 2.89 kg (6.37 lb)
Networking Interfaces:
16x 10/100/1000 Mbps RJ45 Ethernet Ports
2x 1 Gbps SFP Ethernet Ports
Management: Interface Ethernet In-Band
Total Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
MAC Address Tabl:e 16384
Maximum Aggregations: 6
Monitoring Sessions: 1
Maximum VLANs: 255
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
Max. Power Consumption:
Including PoE Output: 150W
Excluding PoE Output: 28W
LEDs Per Port:
RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Sound Level:
Fan Level: 0 -> 1.7 dBr
Fan Level: 1, 2, 3 -> 10.8 dBr
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
PoE+ Per Port

PoE Interfaces:
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range 802.3at Mode: 50–57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V
