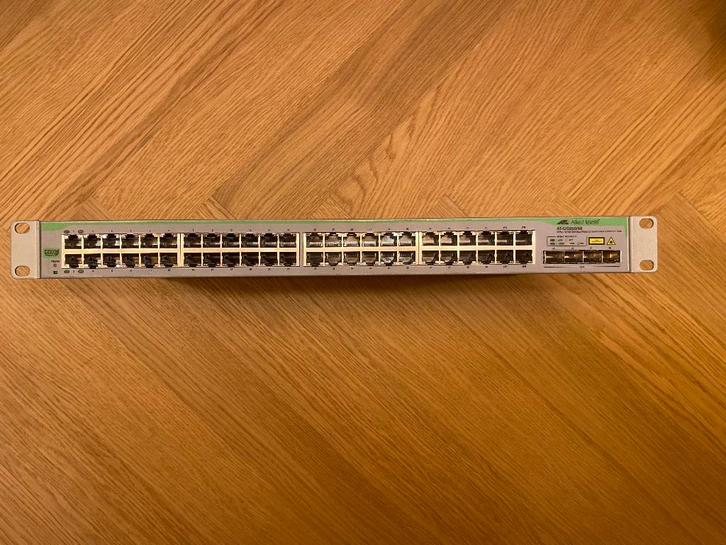

Allied Telesis GS950/48
48 RJ45 ports
4 SFP ports

VLAN
IEEE 802.1Q tagged
Port-based
Up to 256 groups

Quality of Service Classification
IEEE 802.1p tagging
Port-based priority
Four priority queues per port

IP Multicast Support (IPv4)
IGMP snooping (v1/v2)
256 Static multicast group (up to)
Spanning-Tree, IEEE 802.1d/w/s

IEEE 802.3ad Link Aggregation
Manual
LACP

IEEE 802.1x Port-based, MAC-based and Network Access Control
Local authentication server (MD5 only)
Remote authentication through RADIUS
Dynamic VLAN assignment
RADIUS Client

Other
IEEE 802.3x flow control or HOL* blocking ۼ
prevention (* when flow control is off)
Port mirroring
Destination MAC filtering
Ingress/egress rate limiting
Broadcast storming control
Jumbo Frames - up to 10K
617-000478 RevT

Management Features
Web-based configuration
CLI configuration on GS950PS Series
SNMP trap view
LLDP
Firmware upgrade by FTP and HTTP
Configuration backup/restore by FTP and HTTP
Factory reset
Password access control and restricted
IP access list
SNMPv1/v2c/v3
DHCP client
Syslog support
System time configuration (SNTP manual)
Statistics Charts in Web

MIBs
RFC 1213 MIB-II
RFC 1643 Ethernet MIB
RFC 1493 Bridge MIB
RFC 2131 DHCP client
Private Enterprise MIB (Allied Telesis provides the spec)

RMON Groups (1, 2, 3, 9)
Stats
History
Alarms
Events

ACL
entries (shared)
