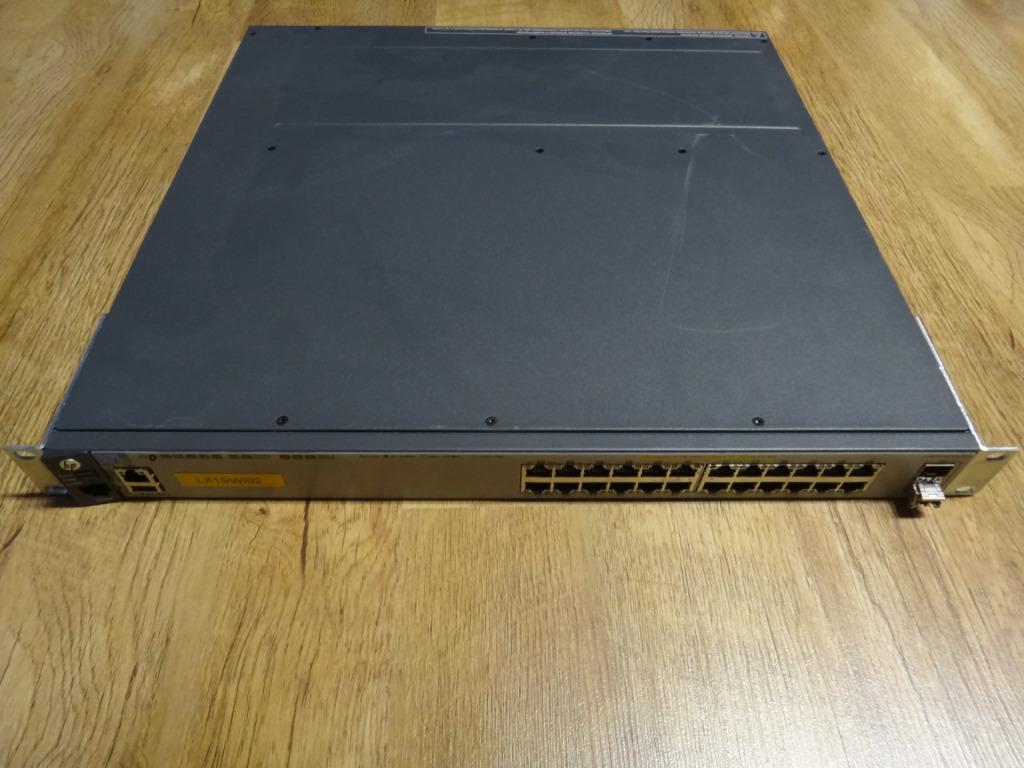

Switch HP E3800 24G-2SFP+

A vendre matériel informatique décommissionné
Raison : déménagement des bureaux vers "office as a service" et migration IT vers datacenter/cloud


HP E3800 Switch Series - Specifications
https:support.hpe.com/hpesc/public/docDisplay?docId=c03007561&docLocale=en_US

HP E3800-24G-PoE+-2SFP+ Switch (J9573A)
-Dimensions (D X W X H) 46.74 x 44.27 x 4.32 cm (18.4 x 17.43 x 1.7 in) (1U height)
-Weight1 7.21 kg (15.9 lb)
-Fan tray
- 1 x J9582A
- 1 fan tray slot
-Memory and processor
- HP ProVision ASIC/ARM @ 350 Mhz
- Freescale PowerPC @ 1200 MHz, 4 GB flash, 2 GB SDRAM
- Packet buffer size: 18MB dynamic
-Ports
- 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
- Duplex: 10BASE-T/100BASE-TX: half or full
- 1000BASE-T: full only
- 2 fixed 1000/10000 SFP+ ports
- 1 RJ-45 serial console port
- 1 RJ-45 out-of-band management port
- 1 Stacking module slot

Electrical specifications
- Power supplies (2 power supply slots 1 minimum power supply required includes)
- 1 x J9580A (HP X312 1000 W 100-240 V ac to 54 V dc power supply)
- Maximum heat dissipation
- 434 BTU/hr (457.87 kJ/hr)
- Voltage
- 100-120/200-240 V ac
- Current
- 9.4/7.8 A
- Idle power
- 70 W
- Maximum power rating
- 127 W
- PoE power
- 720 W
- Frequency
- 50/60 Hz
- NOTE:
- Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
- J9573A/J9587A: With a single power supply @ 120 V input, a maximum of 572 W of PoE power is available.

Environmental specifications
- Operating temperature
- 0° to 55°C (32° to 131°F); Max temperature is 45°C when tranceivers are installed.
- Operating relative humidity
- 15% to 95% @ 40°C (104°F), noncondensing
- Nonoperating/Storage temperature
- -40° to 70°C (-40° to 158°F)
- Nonoperating/Storage relative humidity
- 15% to 90% @ 65°C (149°F), noncondensing
- Altitude
- Up to 3 km (10,000 ft)
- Acoustic
- Power: 49 dB, Pressure: 33.7 dB

Performance specifications
- 1000Mb latency
- 95% reductions, 0.5 period; 30% reduction, 25 periods
- Harmonics
- EN 61000-3-2, IEC 61000-3-2
- Flicker
- EN 61000-3-3, IEC 61000-3-3

Safety certifications
- Safety
- EN 60950/IEC 60950; UL 60950; CAN/CSA 22.2 No. 60950; EN 60825
- Emissions
- FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A


Standards and protocols
Device management
RFC 1591 DNS (client)
HTML and telnet management
General protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 2548 (MS-RAS-Vendor only)
RFC 3046 DHCP Relay Agent Information Option
RFC 3576 Ext to RADIUS (CoA only)
RFC 3768 VRRP
RFC 4675 RADIUS VLAN & Priority
UDLD (Uni-directional Link Detection)
IP multicast
RFC 3376 IGMPv3 (host joins only)
RFC 3973 Draft 2 PIM Dense Mode
RFC 4601 Draft 10 PIM Sparse Mode
IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2375 IPv6 Multicast Address Assignments
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2925 Remote Operations MIB (Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (client only)
RFC 3484 Default Address Selection for IPv6
RFC 3587 IPv6 Global Unicast Address Format
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 (host joins only)
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4294 IPv6 Node Requirements
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
RFC 5340 OSPFv3 for IPv6
RFC 5453 Reserved IPv6 Interface Identifiers
RFC 5722 Handling of Overlapping IPv6 Fragments
MIBs
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1724 RIPv2 MIB
RFC 1850 OSPFv2 MIB
RFC 2021 RMONv2 MIB
RFC 2096 IP Forwarding Table MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
XRMON
OSPF
RFC 2328 OSPFv2
RFC 3101 OSPF NSSA
RFC 5340 OSPFv3 for IPv6
QoS/CoS
RFC 2474 DiffServ Precedence, including 8 queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
Access Control Lists (ACLs)
MAC Authentication
MAC Lockdown
MAC Lockout
Port Security
Secure Sockets Layer (SSL)
SSHv1/SSHv2 Secure Shell
Web Authentication
