Condition: Refurbished

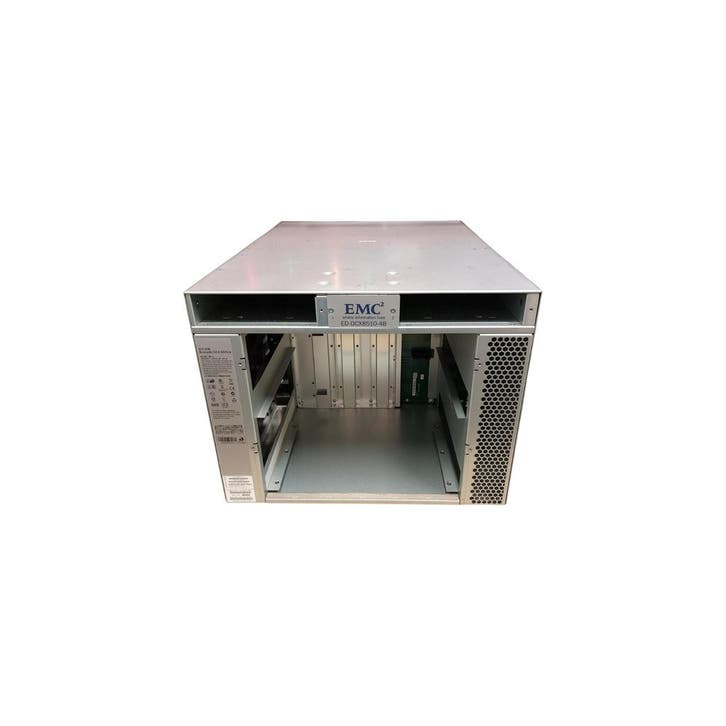

The EMC Connectrix ED-DCX8510-4B is an enterprise-class Fibre Channel SAN Director switch designed for high-performance storage networking in data center environments. Based on Brocade DCX 8510-4B technology, it provides scalable Fibre Channel connectivity between servers, storage systems, and SAN fabrics. The 8U chassis supports modular port blades, redundant components, advanced fabric management, and high availability features for mission-critical storage environments. It uses 16 Gb Fibre Channel technology powered by Broadcom Condor-3 ASIC architecture and is designed for large enterprise SAN deployments.

Features:

• Maximum Fibre Channel ports: 256 ports (maximum chassis capacity)
• Common 16 Gb FC configuration: up to 192 ports
• Port blade slots: 4 slots
• Supported port blades: 32-port 16 Gb FC blade 48-port 16 Gb FC blade 64-port 8 Gb FC blade

Whats in the Box?

• ED-DCX8510-4B

Specifications:

General Information

• Number of Ports: 0
• Model Number: ED-DCX8510-4B
• Item Dimensions - H x W x D (IN): 13.56 x 17.23 x 24.09
• Airflow: AFO (Front to Back)
• Power Source Type: AC
• Item Weight (LBS): 60
