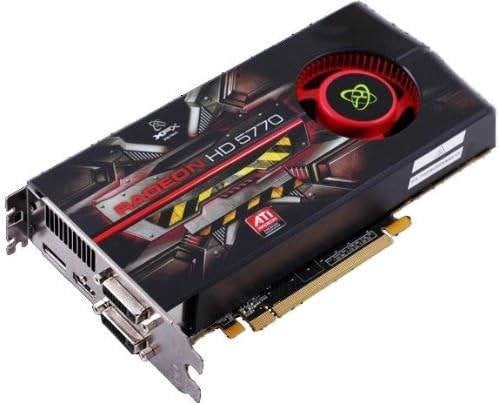

Foto's en info is van het internet , dit voor de meest correcte info en duidelijke foto te tonen. De beeldkaart is amper gebruikt doordat na de pc kort na het plaatsen werd vervangen.
Name / Brand / Architecture
Manufacturer:
XFX
Model:
Radeon HD 5770
Part number:
HD-577X-ZNFC
Based on:
ATI Radeon HD 5770 [Compare]
Target market segment:
Desktop
Die name:
Juniper XT
Architecture:
TeraScale 2 Unified Processing Architecture
Fabrication process:
40 nm
Transistors:
1.04 billion
Bus interface:
PCI-E 2.1 x 16
Frequency
Graphics clock:
850 MHz
Memory specifications
Memory size:
1 GB / 1024 MB
Memory type:
GDDR5
Memory clock:
1.2 GHz / 1200 MHz
Memory clock (effective):
4.8 GHz / 4800 MHz
Memory interface width:
128-bit
Memory bandwidth:
76.8 GB/s
Cores / Texture
Color ROPs:
16
Z/Stencil ROPs:
64
Stream processors:
800
Texture units:
40
RAMDACs:
400 MHz
Decoders:
Adobe Flash
DivX
H.264
MPEG 1
MPEG-2
VC-1
SLI / Crossfire
Maximum crossfire options:
2-way
Electric characteristics
Maximum power draw:
108 Watt
Video features
Multi-monitor:
Up to 4 displays
Maximum digital resolution:
2560 x 1600
Maximum DP resolution:
2560 x 1600
Maximum DVI resolution:
2560 x 1600
Maximum HDMI resolution:
1920 x 1200
Maximum VGA resolution:
2048 x 1536
Anti-Aliasing technologies:
24 x MSAA
24 x SSAA
Adaptive AA
HDMI:
Yes
HDMI version:
1.3
Performance
Pixel fill rate:
13.6 Gigapixels/s
Texture fill rate:
34 Gigatexels/s
Single presision compute power:
1360 GFLOPS
Double precision compute power:
n/a
External connectors
Standard display connectors:
2 x Dual-Link DVI-I
DisplayPort
HDMI
Power connectors:
1 x 6-pin
Audio input for HDMI:
Yes
Dimensions
Size (length x height):
8.50 inches (216 mm) x 4.37 inches (111 mm)
Width:
Dual-Slot
Other features / Support
Other features:
ATI/AMD PowerPlay
Direct Compute 11
HD3D Technology
HDCP
High Dynamic Range (HDR) Support
Open CL support:
1.1
OpenGL support:
4.1
DirectX support:
11.0
Shader model:
5.0
