Caractéristiques
État
Utilisé
Marque
Zortrax
Têtes d'impression
1
Description

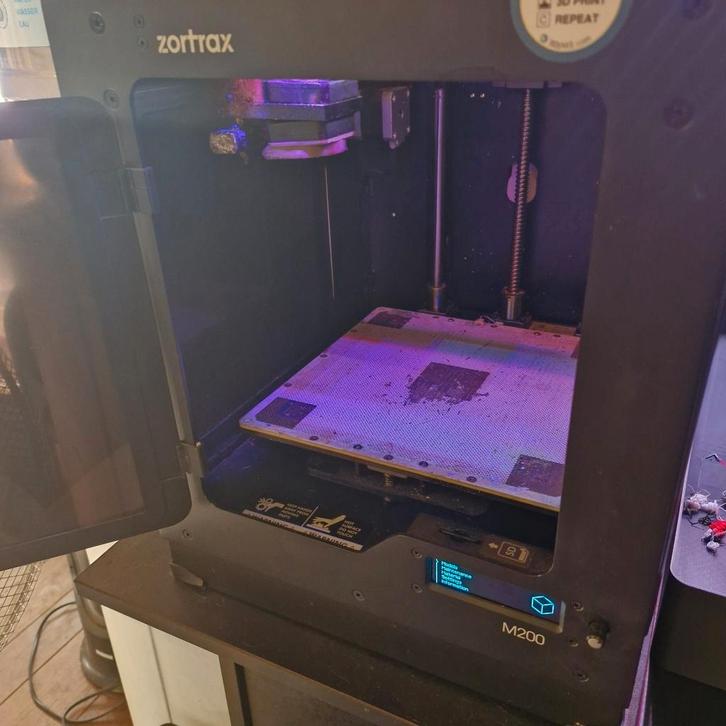

Opgelet deze printer heeft al enkele jaren dienst gehad . Hij werkt nog steeds enkel zijn de 2 fans aan de printkop aan vervanging toe. De nieuwprijs van deze printer lag tussen de 1500 en 2000€ destijds. Onderdelen voor deze zijn nog steeds verkrijgbaar of kan je zelfs zelf drukken. De deurtjes bv zijn 249€ nieuw te verkrijgen zitten hier al op natuurlijk maar het is maar om een idee te geven hoe kostelijk deze waren. Elk bod wordt overwogen. Hieronder vindt u zijn specificaties.
Device features
Build volume
200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in)
Material container
Spool
Material diameter
1,75 mm (0.069 in)
Nozzle diameter
0,4 mm (0.016 in)
Extruder
Single
Platform
Perforated, heated
Connectivity
SD card (included)
Support
Mechanically removed - printed with the same material as the model
Materials
Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-PCABS, Z-ABS, Z-ASA Pro, Z-PLA Pro
External materials
Applicable
In the box
3D printer, spool of material, SD Card, build platform, heatbed cable, power cable, spool holder, material guide, quick start guide, Z-SUITE software, starter kit
Weight and physical dimensions
3D printer (W x D x H)
350 x 360 x 505 mm (13.8 x 14.2 x 19.9 in)
With a spool
350 x 440 x 505 mm (13.8 x 17.3 x 19.9 in)
Shipping box
470 x 480 x 570 mm (18.5 x 18.9 x 22.4 in)
Shipping weight
26 kg (57.3 lbs)
Printer weight*
14.5 kg (32 lbs)
Additional information
Each delivered printer may have worked up to 50 hours during the quality control test prints.
Printing
Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-390 microns
Minimal optimal wall thickness
800 microns
Minimal wall thickness
450 microns
Dimensional accuracy
+/- 0,2%*
Angle accuracy
+/- 0,2%
X/Y positioning accuracy
1.5 micron
Z-axis single step
1.25 micron
Platform leveling
Automatic measurement of platform points' height
Maximum platform temperature
105 ˚C (221 °F)
Maximum printing temperature (extruder)
290 ˚C (554 °F)
Ambient operation temperature
20 - 30 ˚C (68 °- 86 °F)
Storage temperature
0 - 35 ˚C (32 ˚- 95 ˚F)
AC input
110 V ~ 5.9 A 50/60 Hz
240 V ~ 2.5 A 50/60 Hz
Power supply parameters
24 V DC @8 A, 320 W
Maximum power consumption
200 W
Software
Software bundle
Z-SUITE 2.0
Supported file types
.stl, .obj, .dxf, .3mf
Supported operating systems
Mac OS X / Windows 10 and newer versions
Device features
Build volume
200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in)
Material container
Spool
Material diameter
1,75 mm (0.069 in)
Nozzle diameter
0,4 mm (0.016 in)
Extruder
Single
Platform
Perforated, heated
Connectivity
SD card (included)
Support
Mechanically removed - printed with the same material as the model
Materials
Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-PCABS, Z-ABS, Z-ASA Pro, Z-PLA Pro
External materials
Applicable
In the box
3D printer, spool of material, SD Card, build platform, heatbed cable, power cable, spool holder, material guide, quick start guide, Z-SUITE software, starter kit
Weight and physical dimensions
3D printer (W x D x H)
350 x 360 x 505 mm (13.8 x 14.2 x 19.9 in)
With a spool
350 x 440 x 505 mm (13.8 x 17.3 x 19.9 in)
Shipping box
470 x 480 x 570 mm (18.5 x 18.9 x 22.4 in)
Shipping weight
26 kg (57.3 lbs)
Printer weight*
14.5 kg (32 lbs)
Additional information
Each delivered printer may have worked up to 50 hours during the quality control test prints.
Printing
Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-390 microns
Minimal optimal wall thickness
800 microns
Minimal wall thickness
450 microns
Dimensional accuracy
+/- 0,2%*
Angle accuracy
+/- 0,2%
X/Y positioning accuracy
1.5 micron
Z-axis single step
1.25 micron
Platform leveling
Automatic measurement of platform points' height
Maximum platform temperature
105 ˚C (221 °F)
Maximum printing temperature (extruder)
290 ˚C (554 °F)
Ambient operation temperature
20 - 30 ˚C (68 °- 86 °F)
Storage temperature
0 - 35 ˚C (32 ˚- 95 ˚F)
AC input
110 V ~ 5.9 A 50/60 Hz
240 V ~ 2.5 A 50/60 Hz
Power supply parameters
24 V DC @8 A, 320 W
Maximum power consumption
200 W
Software
Software bundle
Z-SUITE 2.0
Supported file types
.stl, .obj, .dxf, .3mf
Supported operating systems
Mac OS X / Windows 10 and newer versions
...
...
...
...
...
...
...
...
...
...
...
...
