Caractéristiques
État
Comme neuf
Type
Hélicoptère
Type de moteur
Autres types
Description

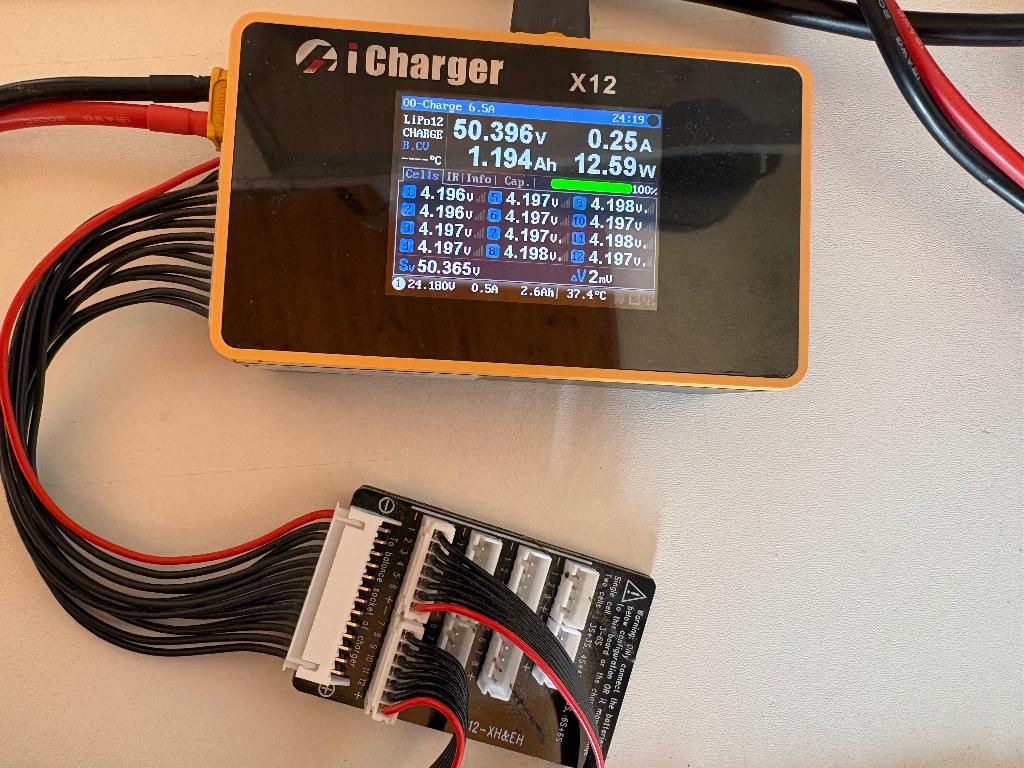

Compact 1100W charger up to 12S with integrated balancer, USB port and card slot for Micro SD cards.
2A balancer current
Technical Data
- Microprocessor controlled high performance fast charger/discharger and balancer
- 2.4" IPS LCD color display - 320x240
- Supported battery types: LiIo/LiPo/LiFe/LIHV/LTO/NiZn, NiMH/NiCd, Pb
- Cell count: 1-12 LiIo/LiPo/LiFe/LIHV/LTO/NiZn, 1-32 NiMH/NiCd, 1-20 Pb
- Input voltage: DC 11-53 V
- Input current: < 35A
- Charging power max: 1100W from approx. 32V input voltage
- Charging power at input voltage 12V: approx. 400W
- Charging power at input voltage 24V: approx. 800W
- Charging power at input voltage 30V: approx. 1000W
- Charging current: 0,05 - 30A
- Discharge power max.: 50W
- Discharge current: 0,05 - 30A
- Regenerative discharging: up to 1100W
- Discharge with external load max: 1500W 50V/30A
- Balancer current: 2A per cell
- automatic fan control - 1 fan
- Micro USB port
- Micro SD slot to store logs and data
- dimension: 112×64×37 ±0,5mm
- Connector input and output: XT60 connector
- weight: 230g
Other functions:
- Storage of charging programs and export to SD card
- Internal resistance measurement of cells
- servo test
- Firmware update via USB connection possible.
2A balancer current
Technical Data
- Microprocessor controlled high performance fast charger/discharger and balancer
- 2.4" IPS LCD color display - 320x240
- Supported battery types: LiIo/LiPo/LiFe/LIHV/LTO/NiZn, NiMH/NiCd, Pb
- Cell count: 1-12 LiIo/LiPo/LiFe/LIHV/LTO/NiZn, 1-32 NiMH/NiCd, 1-20 Pb
- Input voltage: DC 11-53 V
- Input current: < 35A
- Charging power max: 1100W from approx. 32V input voltage
- Charging power at input voltage 12V: approx. 400W
- Charging power at input voltage 24V: approx. 800W
- Charging power at input voltage 30V: approx. 1000W
- Charging current: 0,05 - 30A
- Discharge power max.: 50W
- Discharge current: 0,05 - 30A
- Regenerative discharging: up to 1100W
- Discharge with external load max: 1500W 50V/30A
- Balancer current: 2A per cell
- automatic fan control - 1 fan
- Micro USB port
- Micro SD slot to store logs and data
- dimension: 112×64×37 ±0,5mm
- Connector input and output: XT60 connector
- weight: 230g
Other functions:
- Storage of charging programs and export to SD card
- Internal resistance measurement of cells
- servo test
- Firmware update via USB connection possible.
...
...
...
...
...
...
...
...
...
...
...
...
