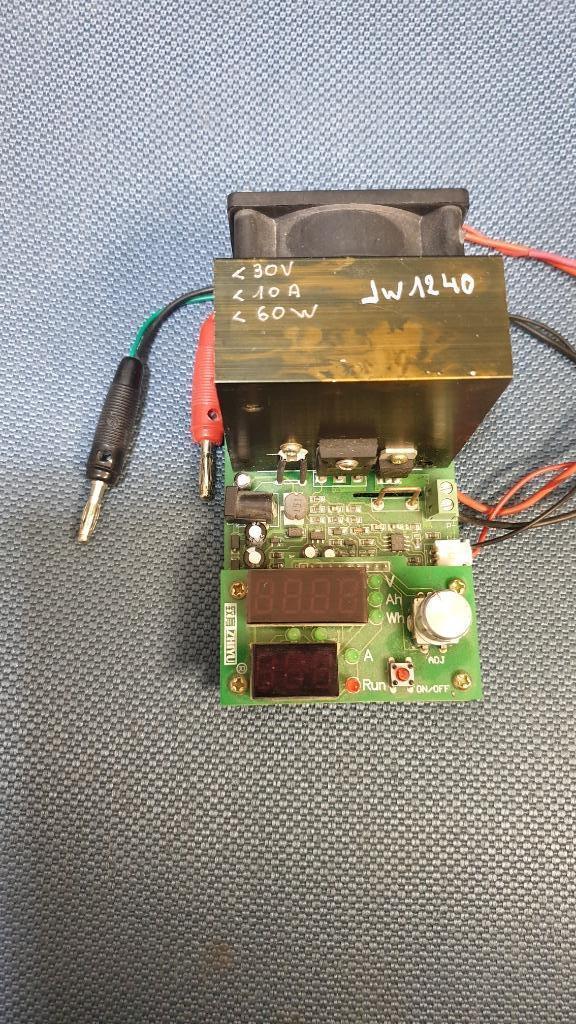

jw1240: elektronische belasting als test van voeding en bat

dus een electronische belasting om voedingen en / of batterijen te testen. max voltage: 30V, 10A , of 60Watt.
dus een electronische belasting om voedingen en / of batterijen te testen.
Note: This product is a professional testing equipment , requiring the user must have some basic electronic ( example: Users should understand what is the meaning of the voltage and current capacity Ah , etc. ) , or you may be unable to properly use the device , possibly mishandled cause unnecessary damage caused by the test device loss!

externe voeding nodig:DC12V voltage en 0.5A
Operating modes: single mode constant current (CC)
Discharge current: 0.20-9.99A stepper 0.1A or0.01A
Discharge current maximum error: 0.7% +-0.01A
The maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Offline (termination) Voltage Range: 1.0-25.0V stepping 1V or 0.1V
Discharge voltage: 1.00-30.00V
Maximum power: 60W super power automatically limits the maximum current .
(for example, up to 60W when it can open 9.99A 6V
and 20V maximum at the only open 3.00A)
