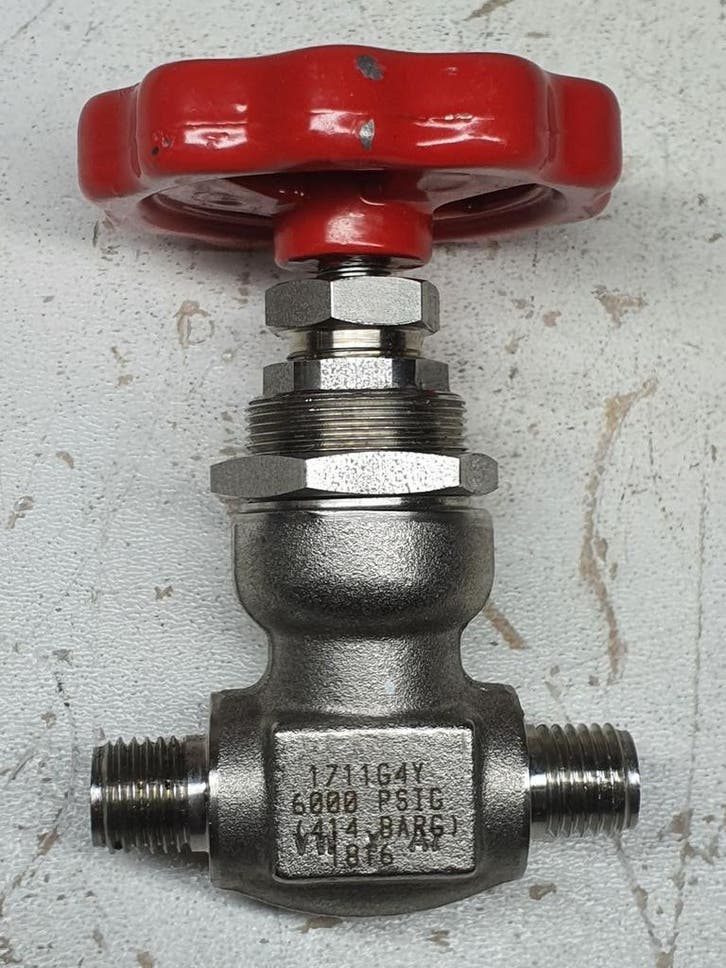

SPECIFICATIONS:

INLET A
1/4" Gyrolok
OUTLET B
1/4" Gyrolok
D
3 in76 mm
E
2 1/16 in52 mm
F
2 1/8 in54 mm
H
1/2 in13 mm
H1
1 1/16 in27 mm
Stem Tip
Metal stem tip for service to +450° F (+232° C)
Body Material
316 Stainless Steel
Maximum Operating Pressure
6000 psig at 70° F (414 Bar at 21° C)
Operating Temperature Range
-65° to +450° F (-54° to +232° C)
Orifice
0.187 in4.70 mm
Cv Factor
0.31
Panel Hole
22.6 mm57/64 in
Panel Thickness
6.4 mm1/4 in
Features & Benefits
Safety

- Lock nut secures packing nut to prohibit accidental removal

- Long cycle life

- Packing below stem threads prevents fluid from contacting the stem threads
- Non-rotating hardened 17-4PH stainless steel, Monel or replaceable PCTFE stem tip is combined with a hardened 450 stainless steel - or Monel thread gland to reduce galling

- Helps eliminate fugitive emissions

- Dyna-Pak packing provides a leak-tight seal with low operating torque

- Reliability

- All valves are tested for bubble-tight leakage at both seat and packing

- Installation variety

- Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections

- Panel mounting

- Panel mounting is standard on all models
- Special High Tolerance NPT ThreaD
