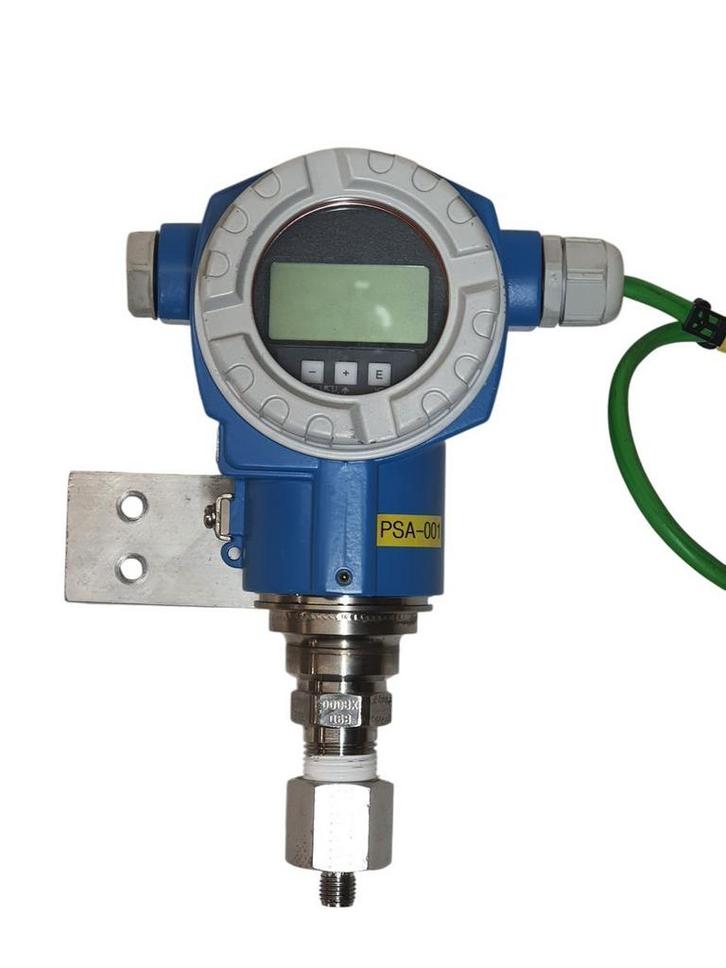

Endress+Hauser Cerabar S PMP71
Category Parameter Specification Pressure Measurement Pressure Type Gauge pressure   Measuring Range (Sensor) -1 . 400 bar   Configured Span 4 . 400 bar   Lower Range Value (LRV) 4 bar (4 mA)   Upper Range Value (URV) 400 bar (20 mA)   Calibration / Adjustment Range 0 . 150 bar Process Connection Connection Type ½" NPT   Material (Process-Wetted / Lower Part) 316L stainless steel   Pressure Rating Suitable for applications up to 400 bar Output & Communication Output Signal 4-20 mA   Communication Protocol HART   Wiring 2-wire, loop-powered   Supply Voltage 11.5 . 45 V DC Materials & Construction Sensor Material Stainless steel   Wetted Parts Material 316L stainless steel (½" NPT1 / 1.4435 / 1.4404)   Gauge Transmitter Material 1.4435 / 316L stainless steel, 1.4404 / 316L stainless steel Model & Ordering Model PMP71 (Cerabar S)   Order Code PMP71-ABA1WB1RDAAA Display Local Display Integrated LCD
