Description

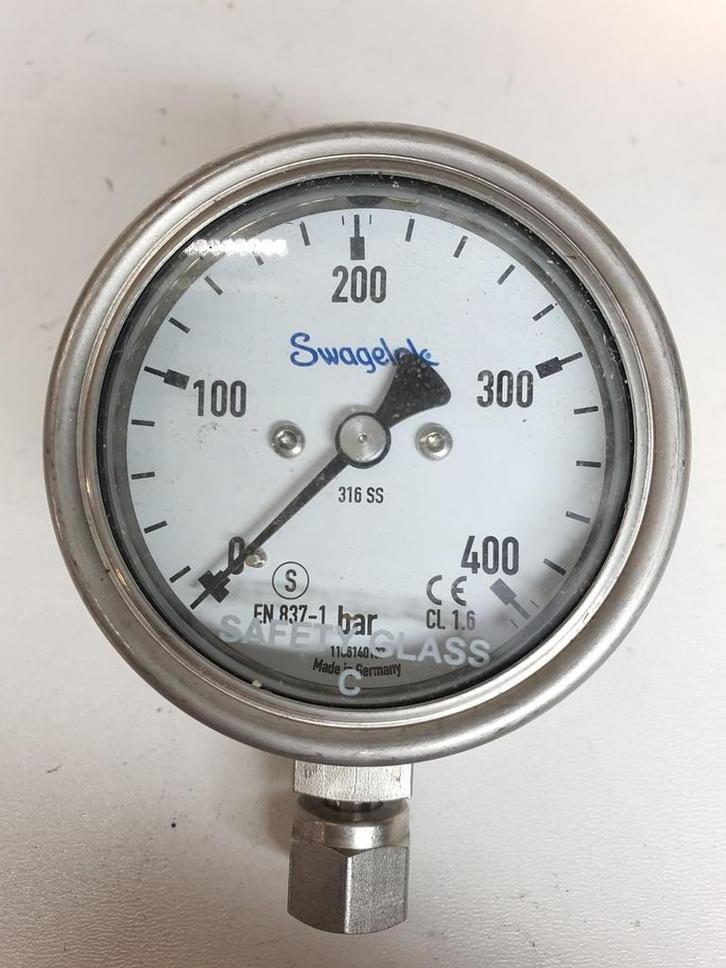

Swagelok Swagelok PGI Industrial Pressure Gauge 0-400 bar 1/4 Tube Fitting Female 63mm 0 to 400 bar (0 to 5800 psi) 63 mm (2.5 inch) Lower mount x/x inch NPT Drukmeter Gebruikt

The Swagelok Pressure Gauge 0-400 bar, CL 1.6, 316SS
Specification Details Standard Compliance EN 837-1 (EU mechanical pressure gauge standard) Dial Size 63 mm (2.5 in) Pressure Range 0-400 bar (0-5800 psi) Construction / Case Material Stainless steel Wetted Materials 316 stainless steel Safety Glass Type Type C Window Polycarbonate or tempered glass (variant dependent) Internals Bourdon tube mechanism for stable, repeatable measurement Performance Accuracy ±1.6% of full scale (accuracy class for PGI 63 mm) Temperature Range -20°C to +60°C (depends on fill and configuration) Vibration Resistance Optional liquid-filled case for enhanced stability Process Connection 1/4" NPT Tube Fitting Mounting Lower mount (code "C" = center back or bottom connection, variant dependent)
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
