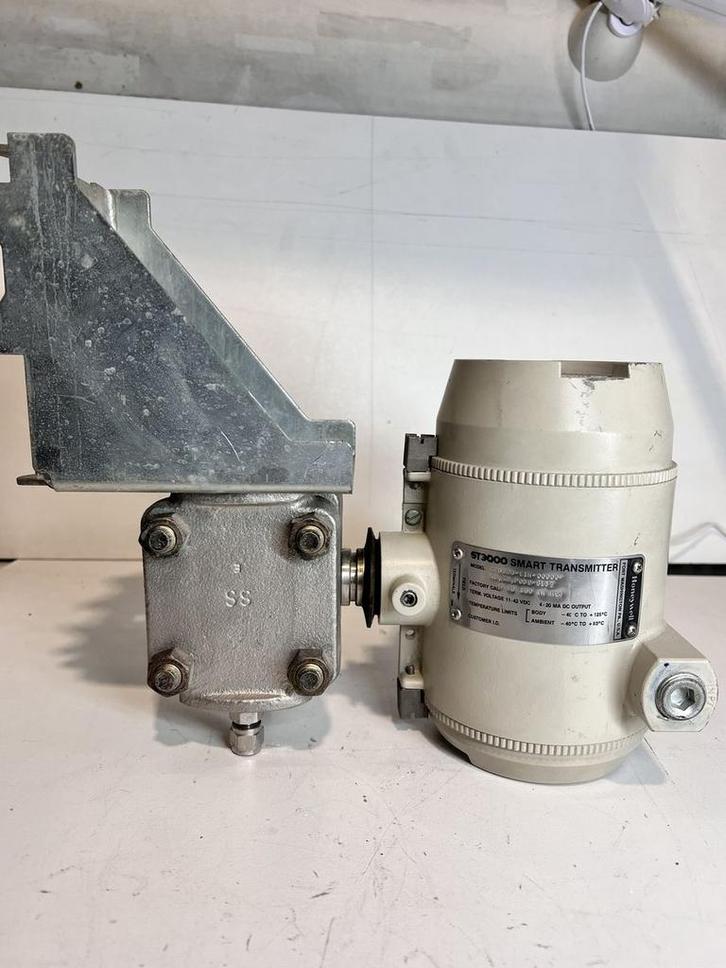

Honeywell ST 3000 SMART (STD120-E1H-00000-MB.S2.POD2-8139 / STD1206-A10-8039) Druktransmitter Sourced from working



Honeywell ST3000 Series - STD120 Differential Pressure Transmitter

Models: STD120-E1H-00000-MB.S2.POD2-8139 / STD1206-A10-8039
Specification Detail Product Series Honeywell ST3000® Series Model STD120 (Series 100) Product Type Smart Differential Pressure Transmitter Manufacturer Honeywell Measuring Principle Piezoresistive differential pressure sensor with digital compensation Differential Pressure Range 0 to 100 inH?O Output Signal 4-20 mA (two-wire) Communication Honeywell DE (Digitally Enhanced); optional HART Supply / Loop Power Intrinsically Safe loop powered Process Temperature Range -40 °C to +128 °C Ambient Temperature Range -40 °C to +93 °C Accuracy ±0.0375% of calibrated span (typical) Long-Term Stability ±0.01% of URL per year (typical) Turndown Ratio Up to 400:1 Wetted Parts 316L Stainless Steel (typical, configuration dependent) Fill Fluid Silicone oil (standard) Process Connection Typically ½? NPT (model dependent) Housing Protection NEMA 4X / IP66/IP67 Mounting Pipe or wall mount (with bracket) Diagnostics Self-diagnostics, sensor and electronics monitoring
Explosion Protection / Intrinsic Safety
Parameter Detail ATEX / PTB Certification EEx ia IIC Certificate PTB Nr. Ex-83/2108X Marking EEx ia IIC T4/T6 Ambient Temp (TA) EEx ia IIC TA Internal Capacitance (Ci) 19 nF (max) Internal Inductance (Li) Negligible / per Honeywell standard
Maximum Intrinsically Safe Electrical Values
Temperature Class Maximum Voltage Maximum Current T6 30 V 100 mA T4 22 V 150 mA Temperature Class Maximum Voltage Maximum Current T6 30 V 100 mA T4 22 V 150 mA
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
