Description

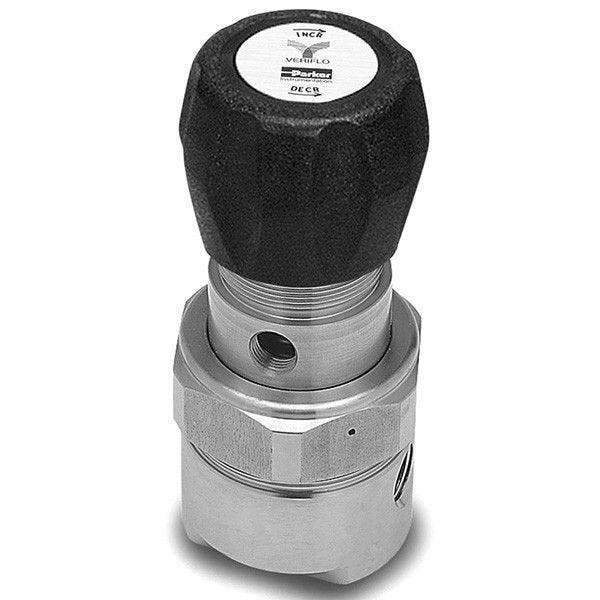

ABP1ST22BP4 Parker Veriflo Back Pressure Regulator
Specifications
Specification Description Product Type Back Pressure Regulator Regulator Type Back Pressure Regulator Type 2-Port Adjustment Type Knob Brand / Division Veriflo (Parker Hannifin) Manufacturer Parker Hannifin Product Category Regulators Port Size 1/4 in. Port 1 Size 1/4 in. End Connection Female Threaded Body Material 316L Stainless Steel Element Material 316L Stainless Steel Diaphragm Material C-22 Hastelloy Seal Material PTFE Seat Material PTFE Pressure Rating - Operating Range 2 to 50 PSIG (Basic) Pressure Rating - Proof 750 PSI Pressure Rating - Burst 1500 PSI Flow Capacity 0.3 Cv Leak Rate Bubble-tight (Internal and External) Temperature Rating ?15 °F to 400 °F Internal Volume 5.9 cm³ Overall Size 2.18 in. Diameter × 4.9 in. Height Mounting Hole Diameter 1.38 in. Pressure Gauge Included No Applications . By-pass control. Vessel pressure control. Pump discharge pressure control. Analyzer discharge to flare header
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Specifications
Specification Description Product Type Back Pressure Regulator Regulator Type Back Pressure Regulator Type 2-Port Adjustment Type Knob Brand / Division Veriflo (Parker Hannifin) Manufacturer Parker Hannifin Product Category Regulators Port Size 1/4 in. Port 1 Size 1/4 in. End Connection Female Threaded Body Material 316L Stainless Steel Element Material 316L Stainless Steel Diaphragm Material C-22 Hastelloy Seal Material PTFE Seat Material PTFE Pressure Rating - Operating Range 2 to 50 PSIG (Basic) Pressure Rating - Proof 750 PSI Pressure Rating - Burst 1500 PSI Flow Capacity 0.3 Cv Leak Rate Bubble-tight (Internal and External) Temperature Rating ?15 °F to 400 °F Internal Volume 5.9 cm³ Overall Size 2.18 in. Diameter × 4.9 in. Height Mounting Hole Diameter 1.38 in. Pressure Gauge Included No Applications . By-pass control. Vessel pressure control. Pump discharge pressure control. Analyzer discharge to flare header
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
