Dobinsons Veerschommel ( Spring Shackle )

Dobinsons Veerschommel ( Spring Shackle )

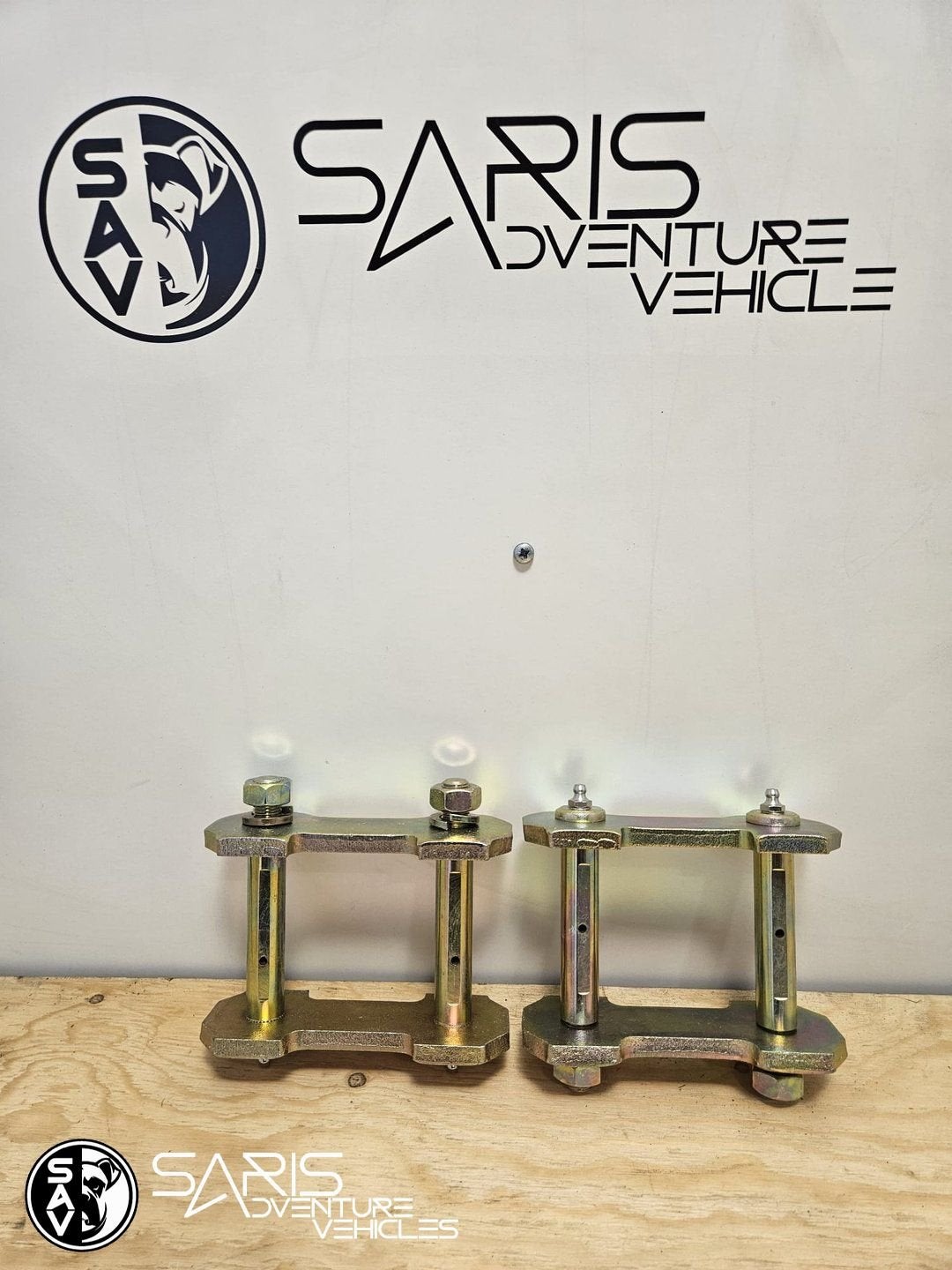

Greaseable Shackle

• Recessed twin hole greasable design, anti-reverse built in to stop the leaf spring from bending backwards
• Reduces friction in bushes, creating a more comfortable ride
• Heavy duty design and provide simple service through external grease nipples
• Sold as a pair to replace the original shackles. Side-specific, includes one left and one right (2 shackles)
• Incredibly tough and durable gold zinc plating

--
Dobinsons Spring & Suspension€™s range of 4x4 shackles and pins have been designed and manufactured to maximize the life of both the polyurethane bushes and shackles. Incorporating a recessed twin hole greasable design to ensure both halves of the polyurethane bush receive even grease distribution. Greasing polyurethane bushes not only reduces friction and wear, it also reduces the chances of corrosion on the shackle pins and reduces squeaking. Dobinsons 4x4 shackles and pins are a heavy duty design and provide simple servicing through external grease nipples. In some cases Dobinsons also provide anti-inverse shackles to prevent the shackles from inverting on lifted leaf spring vehicles. These shackles are made to specifically suit these vehicles: 4x4 models only. These shackles are sold in pairs, one for the left and one for the right side. To replace front and rear, order 2 sets for a total of 4 shackles. Toyota Land Cruiser 40 Series 1980-84 with 35mm spring eyes (FJ40 BJ40 FJ45 HJ47 BJ45 BJ46) Front or Rear Toyota Land Cruiser 60 Series Front or Rear 1980-1990 (FJ60 FJ62 HJ60 HJ61) Toyota Land Cruiser 70 Series Front or Rear (FJ70 BJ70 BJ71 FJ73 BJ73 FJ74 BJ74 HZJ70 HZJ73 PZJ70 PZJ73 FZJ77 HZJ77 PZJ77 FJ75 HJ75 BJ75 FZJ75 HZJ75)


Référence de la pièce:

• SK59-20

Cette pièce est compatible avec les modèles suivants:

Toyota LAND CRUISER (_J7_, _JL7_) 3/1/1984

• 4.2 D 4x4 (HZJ74, HZJ78, HZJ75) 167 CC 123 KW 1/1/1990 tot 8/1/2001
• 2.4 (RJ70_, RJ73_) 105 CC 77 KW 11/1/1984 tot 5/1/1993
• 2.4 (RJ70_, RJ73_, RJ70RV) 110 CC 81 KW 11/1/1984 tot 5/1/1993
• 2.4 (RJ70_V, RJ73_V) 114 CC 84 KW 1/1/1985 tot 12/1/1996
• 2.4 D (LJ70_, LJ70R) 72 CC 53 KW 11/1/1984 tot 10/1/1985
• 2.4 TD (LJ70_, LJ73_, LJ70RV) 86 CC 63 KW 10/1/1985 tot 5/1/1990
• 3.4 TD (BJ71_V, BJ74) 124 CC 91 KW 10/1/1985 tot 12/1/1989
• 4.2 TDi 4x4 (HDJ78) 204 CC 150 KW 9/1/2001 tot 6/1/2006
• 2.4 TD (LJ70) 90 CC 66 KW 1/1/1990 tot 5/1/1993
• 3.0 TD (KZJ70_, KZJ73_, KZJ77_, KZJ78_, KZJ71_) 125 CC 92 KW 5/1/1993 tot 5/1/1996
• 4.2 D (HZJ76, HZJ78, HZJ70, HZJ73, HZJ75, HZJ79, HZJ77,... 131 CC 96 KW 1/1/1990
• 3.4 D (BJ70, BJ73, BJ75) 95 CC 70 KW 11/1/1984 tot 12/1/1996
• 3.5 D 4x4 (PZJ75, PZJ70) 116 CC 85 KW 1/1/1990 tot 12/1/1994
• 4.0 4x4 156 CC 115 KW 10/1/1989 tot 12/1/1997

Toyota LAND CRUISER Hardtop (_J7_) 11/1/1984 tot 8/1/2001

• 2.4 TD (LJ70_, LJ70R) 90 CC 66 KW 7/1/1990 tot 5/1/1996
• 3.0 TD (KZJ70_, KZJ70R) 125 CC 92 KW 5/1/1993 tot 5/1/1996
• 3.5 D 4x4 (PZJ75_) 116 CC 85 KW 1/1/1990 tot 8/1/1992

Toyota LAND CRUISER (_J4_, _J5_) 8/1/1967 tot 11/1/2001

• 4.0 D (HJ47_V) 103 CC 76 KW 8/1/1980 tot 10/1/1984
• 4.2 (FJ40, FJ43, FJ45, FJ55) 121 CC 89 KW 1/1/1975 tot 4/1/1986
• 3.4 D (BJ42_V, BJ45_V, BJ46_, BJ42RV, BJ45RV) 90 CC 66 KW 8/1/1980 tot 10/1/1984
• 3.0 D 4WD (BJ42, BJ40RV) 80 CC 59 KW 3/1/1969 tot 10/1/1984
• 3.6 D (HJ45_V) 90 CC 66 KW 4/1/1979 tot 7/1/1980
• 3.9 (FJ40_, FJ43_, FJ45_, FJ55_V) 131 CC 96 KW 3/1/1969 tot 1/1/1975
• 4.2 (FJ40, FJ45, FJ55, FJ40V, FJ45V, FJ55V) 137 CC 101 KW 1/1/1975 tot 11/1/1982

Toyota LAND CRUISER Pick-up (_J7_, _JL7_) 11/1/1984

• 4.2 D 4x4 (HZJ7V) 131 CC 96 KW 1/1/1990 tot 2/1/2007

Toyota LAND CRUISER Softtop (_J4_) 1/1/1960 tot 12/1/1984

• 3.9 (FJ45_P, FJ45) 131 CC 96 KW 3/1/1969 tot 1/1/1975
• 3.4 4WD (BJ42, BJ45, BJ46) 90 CC 66 KW 8/1/1980 tot 10/1/1983
• 4.2 4WD (FJ45_, FJ45R, FJ40_, FJ40R) 137 CC 101 KW 11/1/1974 tot 12/1/1984

Informations supplémentaires sur le produit:

• Prix (TVA comprise): €75,00
• Livraison: Retrait ou expédition
• Frais de port:€29,95
• État: Nouveau
• Numéro de référence: 2209606
• Type de produit: Ressort à lames
• Livraison: Récupérer ou envoyer
