gekocht in 2022
op te halen in Gent
max 3u per week gebruikt voor laser werk op messing platen.
Aankoopprijs (71294€) excl btw

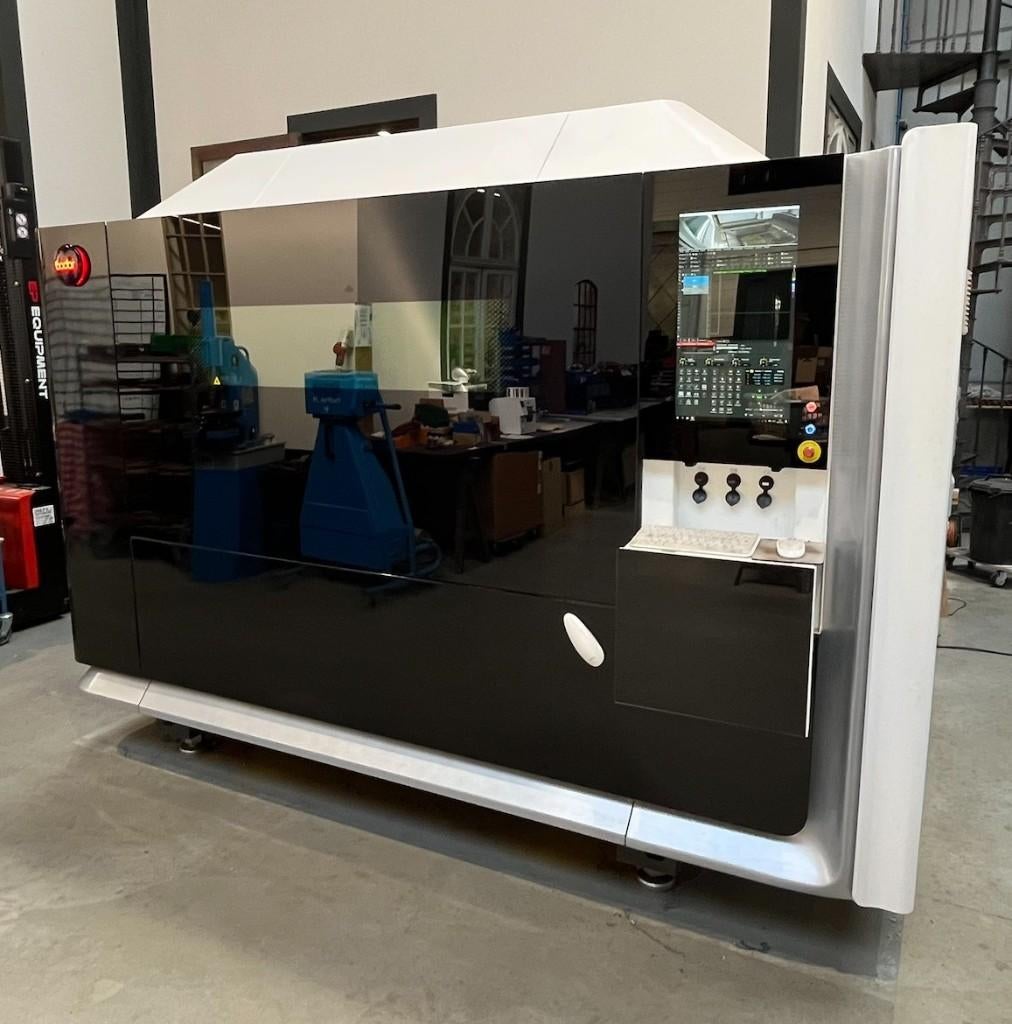

Brand: BODOR - TUV - CE - with pneumatic clamping table Type: i5 Table: 1500x700mm Laser: 3000W (necessary for brass) Main parts: 1.Bodorgenius Autofocus laser head 2.Cast iron machine bed 3.Japan YASKAWA Servo Motor 4.Taiwan ball screw 5.Japan Omron electric compoment 6.Taiwan square rail 7.Exhaust system 8.CW Water Chiller 9.Bodorpro 2.0 control system 10. Green Glass 11.Automatic lubration device 12.Wifi wireless control 13.Closed protection cover

14. 21.5 iches touch screen 15. Scan cut(special for high reflection material) Technical parameter: Max Cutting Area: 700*1500mm X/Y Axis Position Accuracy: 0.05mm X/Y Axis Reposition Accuracy: 0.03mm X/Y Axis Max Move Speed: 60m/min Max Acceleration Speed: 1.5G Max Load Capacity: 250kg Dimension(L*W*H): 2980×2220×1970mm Total Weight: 2000kg
