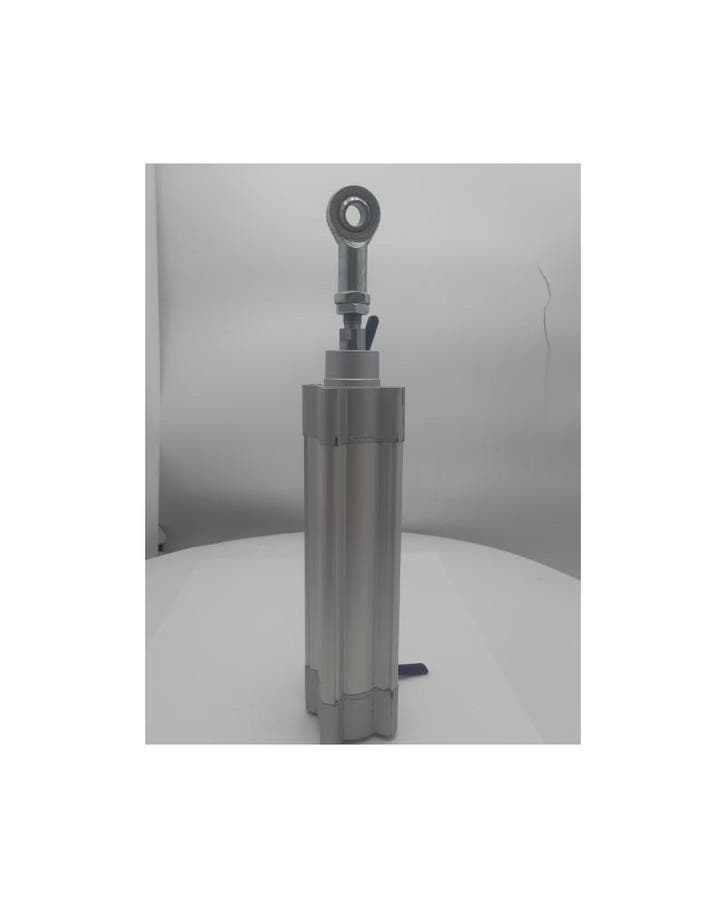

Festo pneumatische cilinder DNCB-40-125-PPV-A

• Stroke
• 125 mm
• Piston diameter
• 40 mm
• Piston rod thread
• M12x1.25
• Cushioning
• Pneumatic cushioning, adjustable at both ends
• Mounting position
• optional
• Conforms to standard
• ISO 15552
• Piston-rod end
• Male thread
• Design
• Piston
• Piston rod
• Profile barrel
• Position detection
• Via proximity switch
• Symbol
• 00991235
• Variants
• Piston rod at one end
• Operating pressure
• 0.06 MPa ... 1.2 MPa
• Operating pressure
• 0.6 bar ... 12 bar
• Mode of operation
• Double-acting
• Operating medium
• Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium
• Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC
• 2 - Moderate corrosion stress
• LABS (PWIS) conformity
• VDMA24364-B1/B2-L
• Ambient temperature
• -20 °C ... 80 °C
• Impact energy in end positions
• 0.2 J
• Cushioning length
• 20 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
• 633 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
• 754 N
• Moving mass for 0 mm stroke
• 307 g
• Additional moving mass per 10 mm stroke
• 16 g
• Basic weight for 0 mm stroke
• 800 g
• Additional weight per 10 mm stroke
• 45 g
• Type of mounting
• Via female thread
• With accessories
• Pneumatic connection
• G1/4
• Note on materials
• RoHS-compliant
• Material cover
• Die-cast aluminium
• Coated
• Material seals
• TPE-U(PU)
• Material piston rod
• High-alloy steel
• Material cylinder barrel
• Wrought aluminium alloy
• Smooth anodised
