For Sale: 2x AQ Trafotek Dry-Type 3-Phase Transformer – 180 kVA (2023)

Condition: Excellent, lightly used
Manufacturer: AQ Trafotek (Finland)
Year of Manufacture: 2023
Type: Dry-Type 3-Phase Transformer (AN cooling)
Rated Power: 180 kVA
Temperature Monitoring: Included – DIEL MT200 with winding temperature alarms

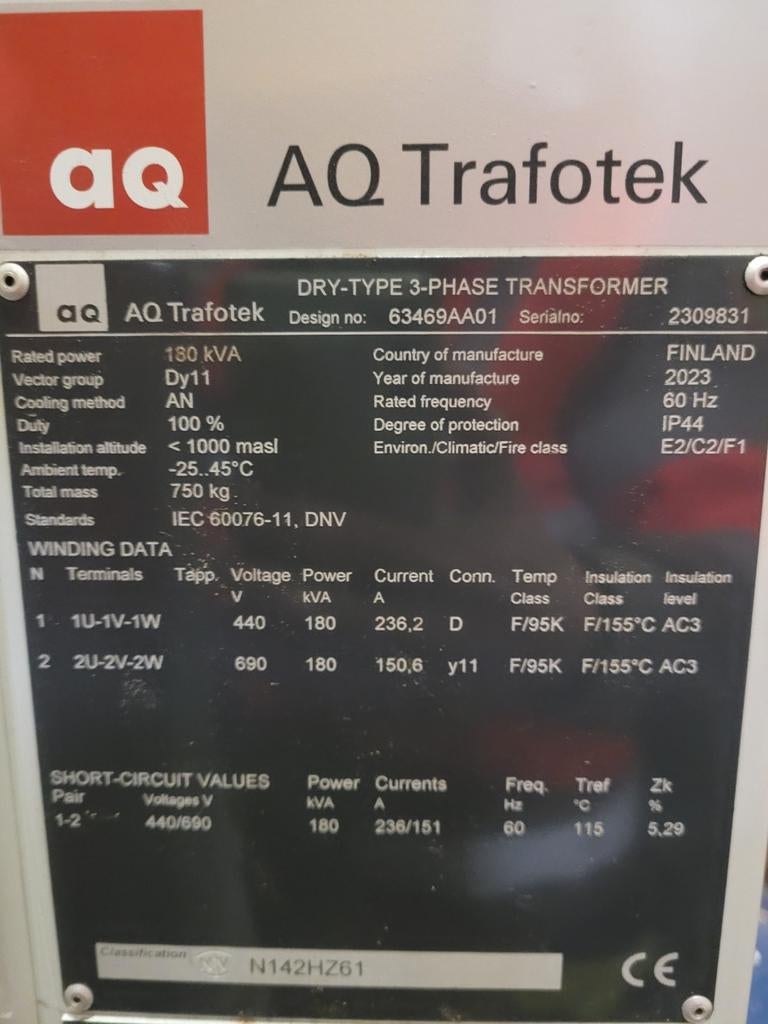

Technical Specifications

Primary & Secondary Windings

Vector group: Dy11

Primary voltage: 690 V

Secondary voltage: 440 V

Primary current: 150.6 A

Secondary current: 236.2 A

Connection:

Primary: y11

Secondary: D

Thermal & Insulation Data

Temperature class: F / 95K

Insulation class: F / 155°C

Protection degree: IP44

Environment / Fire class: E2 / C2 / F1

Ambient operating range: –25°C to +45°C

Monitoring System

DIEL MT200 Temperature Monitoring Unit

Channels for winding L1 / L2 / L3

Alarm and trip thresholds:

Alarm: 145°C

Trip: 155°C

Pre-alarm, alarm, fault indicators

Manual / automatic fan control

Test and programming functions

Other Information

Standard compliance: IEC 60076-11, DNV

Total mass: 750 kg

Duty cycle: 100% continuous

Condition

The transformers are in good condition, fully functional, clean, and equipped with its original temperature protection system.

Price 3000€/trafo (2 available), delivery in Belgium included.
