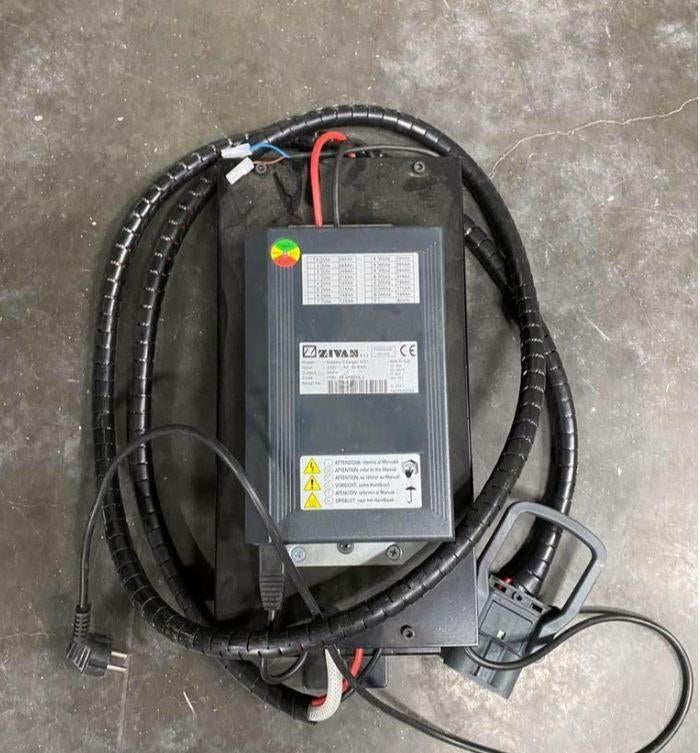

Zivan NG1 batterijlader 24v 35A inclusief P99502C air pump luchtkoeling voor heftruck , stapelaar , clark , hoogtewerker etc..

SINGLE-PHASE BATTERY CHARGER Mod. NG1
• Input Voltage: 230 VAC ± 10 % 115 VAC ± 10 %
• Input frequency: 50 – 60 Hz
• Efficiency: > 85 %
• Minimum power absorbed: < 5 W
• Current absorbed by the battery: < 0.2 mA
• Operating temperature: from – 20 to + 50 °C
• Output short-circuit protection (fuse)
• Inverse polarity protection (fuse)
• Charging curve: programmable
• Accuracy on output voltage: ± 0,5 %
• Thermal compensation of battery voltage (optional with thermal sensor)
• Acoustic alarm
• Auxiliary contacts of main presence and end of charge (Standard Charger) or of air pump control and end of charge (Charger with air pump)
• Cooling: forced
• Case: Metal base, cover in self-extinguishable ABS
• Size: 300 x 160 x 80 mm
• Weight: 2,2 kg
• Enclosure class: IP20
• In conformity with the requirements of the Low Voltage Directive 73/23/EEC and of the Directive EMC 89/336/EEC and their following alterations.
