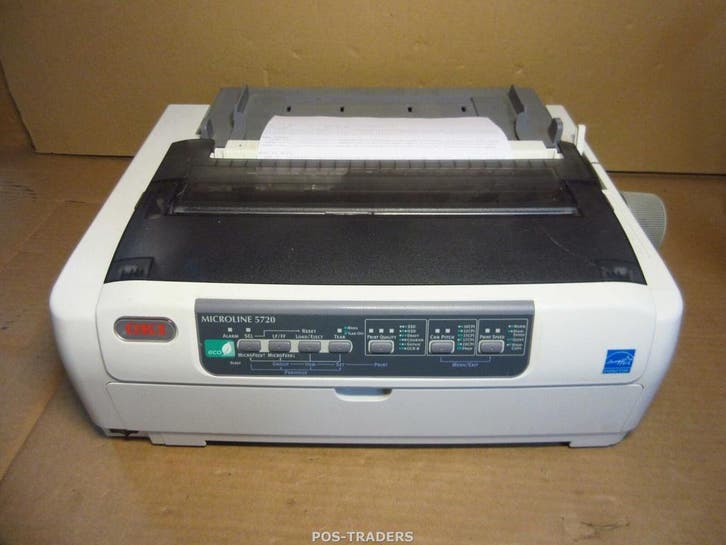

OKI Microline 5720 Dot Matrix A4 USB 6copy Naald Printer

24 STUKS BESCHIKBAAR - DIRECT UIT VOORRAAD LEVERBAAR

Tel 014-699275


Kan verstuurd (15 euro) of afgehaald worden (na afspraak)



Printing Method



Serial Impact Dot Matrix Method



Print Head



Dual 9 Pin



Dot Wire Diameter



0.3 mm



Print Direction



Bidirectional/Unidirectional printing, Short line-seeking printing



Graphic Resolution



Max. 240(H) x 216(V) dpi



Print Speed



Super Speed Draft : 700 cps, High Speed Draft : 600 cps, Draft : 450 cps, Near Letter Quality : 113 cps



Line Feed Pitch



4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255)



Feed Speed



5.25 inches per second



Feed Rate



4.23mm(1/6”) line feed: Approx. 47 milliseconds



Paper Route



Tractor feeder (Front), Tractor feeder (Rear), Tractor feeder (Bottom), Manual (Top), Manual (Front), Roll paper stand, Cut sheet feeder (Rear)



Character Pitch



Super Speed Draft : 12.0 cpi

High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi

Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi

Near Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional



Printing Width



80 characters/line at ANK 10 cpi



Interface



IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)



Emulation



OKI Microline, ESC/P emulation, IBM ProPrinter emulation







Receive Buffer



Max. 128KB



Resident Font



High Speed Draft, Draft, NLQ Courier, NLQ Gothic, OCR-B, Scalable Courier, Scalable Gothic



Font Style



Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline



1-D Barcode



UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5



Paper Type



Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label



Paper Weight Adjustment



Manual



Paper Size



Continuous paper: Width 76.2-254.0mm x Length 76.2-558.8mm

Single part paper: Width 99.1-256.5mm x Length 99.1-363.0mm

Multi part paper: Width 76.2-254.0mm x Length 76.2-558.8mm



Paper Weight



Continuous paper : 45 - 90 gsm

Single part paper : 45 - 90 gsm

Multi part paper : 35 - 40 gsm



Copy Capability



Normal print mode: original + 5sheets(Total Thickness < 0.36mm)

High copy print mode: original + 6 sheets(Total ThicknessWebsitewww.2nd-life-computers.com
